You are here: Bearings Tapered roller bearings Single and multi row tapered roller bearings 32009-XAR FAG

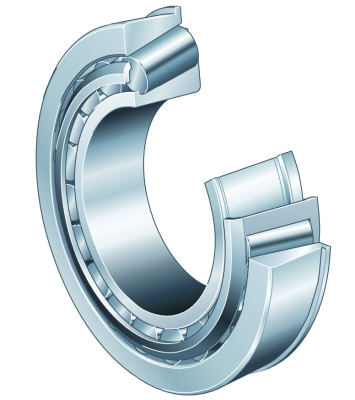

Tapered roller bearing with flange

32009-XAR FAG

Name: 32009-XAR FAG
Rating: 4.8 (3 reviews)

dimensions	45 x 75 x 20
Weight	0.34 kg
C - outer ring width [mm]	15.5
cage	steel, guided by the rolling elements
D1 - flange diameter [mm]	79
Dynamic load rating [N]	61000
e - flange thickness [mm]	2
inner ring width [mm]	20
limiting speed [rpm]	9400
static load rating [N]	86000
thermally safe operating speed [rpm]	5400
type	tapered roller bearing with flange

Attributes Substitutes (1)

32009-XAR FAG

Tapered roller bearing with flange

Attributes

manufacturer	FAG
dimensions	45 x 75 x 20
Weight	0.34 kg
inner ring width [mm]	20
C - outer ring width [mm]	15.5
D1 - flange diameter [mm]	79
e - flange thickness [mm]	2
type	tapered roller bearing with flange
Dynamic load rating [N]	61000
static load rating [N]	86000
cage	steel, guided by the rolling elements
limiting speed [rpm]	9400
thermally safe operating speed [rpm]	5400
