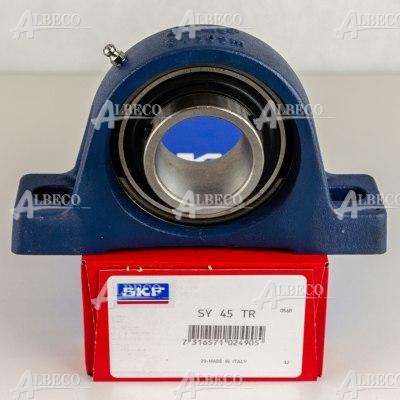

SY 45 TR SKF
Cast iron bearing unit
manufacturer | SKF |
dimensions | 45 x 0 x 0 |
Weight | 2.211 kg |
A [mm] | 48 |
d [mm] | 45 |
F [mm] | 54 |
L [mm] | 187 |
clearence | C3 - greater than normal |
type | cast iron bearing unit |
sealing | NBR contact seal and additional plain flinger on both sides |
A1 [mm] | 32 |
J [mm] | 143.5 |
F2 [mm] | 107 |
Dynamic load rating [N] | 33200 |
static load rating [N] | 21600 |
country of origin | Italy |
limiting speed [rpm] | 2400 |
