You are here: Power transmission Couplings Clamping sleeves CAL10F35/75 SIT

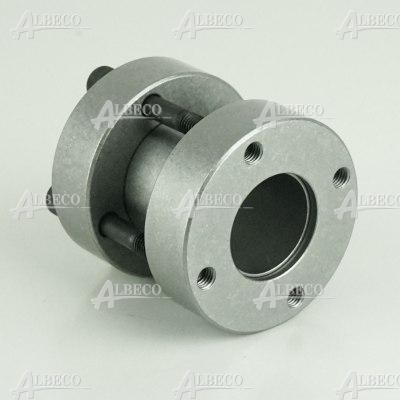

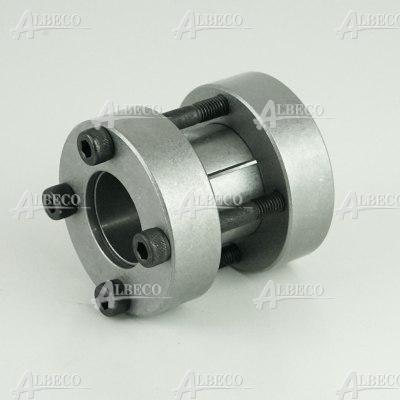

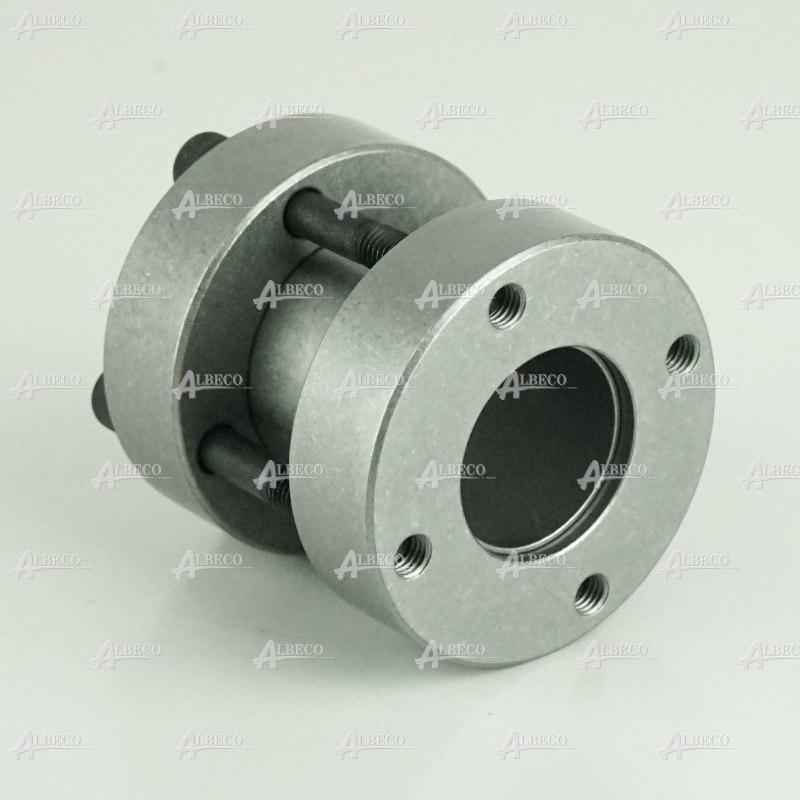

Clamping element, SIT-LOCK, not self-centering

CAL10F35/75 SIT

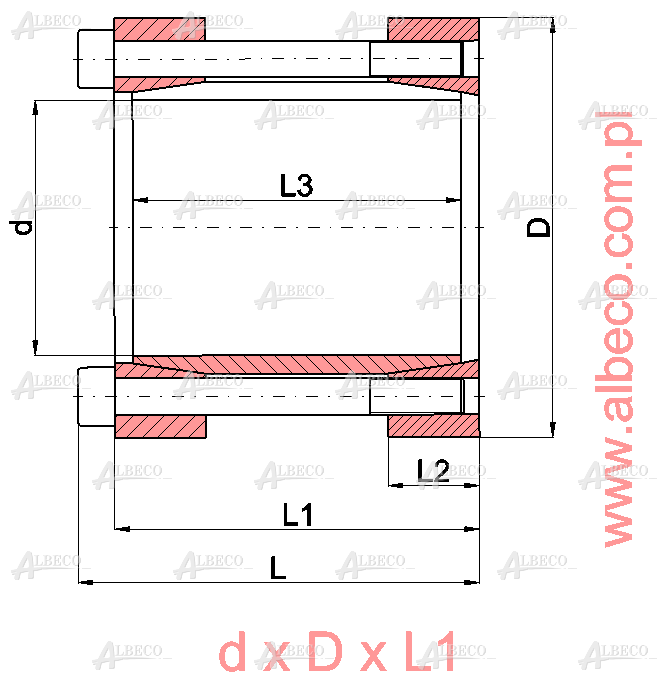

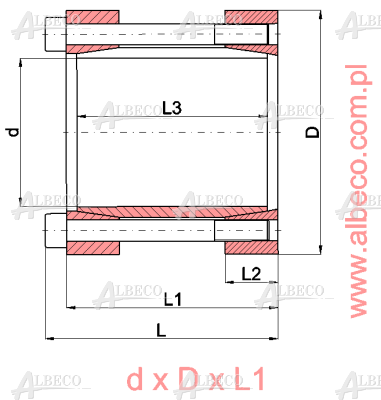

dimensions 35 x 75 x 75
Weight 1.412 kg
clamping screw M8x70
country of origin China
feature external rigid joint
L2 [mm] 22
L3 [mm] 67
L [mm] 83
material steel
mounting holes number 4
product feature sit-lock
product feature not self-centering
screw tightening torque [Nm] 42
Plewiska (18)

on stock

CAL10F35/75 SIT

Clamping element, SIT-LOCK, not self-centering

Attributes
manufacturer SIT
dimensions 35 x 75 x 75
Weight 1.412 kg
feature external rigid joint
mounting holes number 4
L [mm] 83
L2 [mm] 22
L3 [mm] 67
material steel
screw tightening torque [Nm] 42
transmissible torque moment [Nm] 682
transmissible axial load [kN] 39
type clamping element
product feature sit-lock
product feature not self-centering
country of origin China
clamping screw M8x70

Technical materials

Product's substitutes
Product
dimensions
availability
Net price

PHF FX130-35X75 SKF

Clamping element, not self-centering

35 x 75 x 75

GB35 SIT

Rigid coupling

35 x 103 x 158

in stock

Plewiska: 7 pcs

2-3 weeks: 50 pcs
