You are here: Accessories Nuts ZMA50/75 INA
ZMA50/75
ZMA50/75
ZMA50/75
ZMA50/75

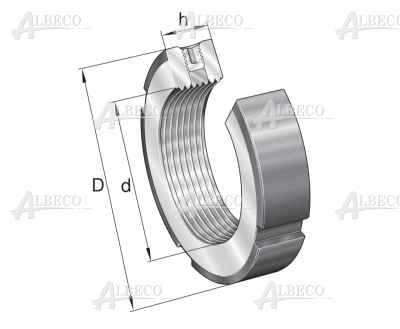

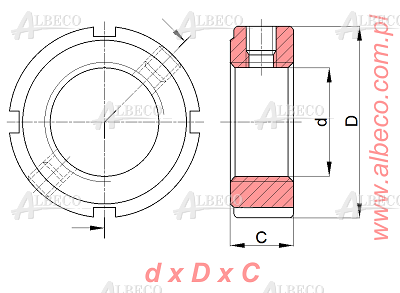

Precision locknut

ZMA50/75 INA

dimensions 50 x 75 x 25
Weight 0 kg
additional description zacisk promieniowy
breakawag [Nm] 130
breaking load, axial 415000
country of origin Switzerland
D [mm] 75
mass moment of inertia [kg*cm²] 4.89
mounting torque [Nm] 85
screw tightening torque [Nm] 15
screw tightening torque [Nm] 15
thread M50x1,5
type precision locknut
Plewiska (3)

on stock
Log in to see the price
Attributes Substitutes (8)

ZMA50/75 INA

Precision locknut

Attributes
manufacturer INA
dimensions 50 x 75 x 25
Weight 0 kg
D [mm] 75
thread M50x1,5
screw tightening torque [Nm] 15
screw tightening torque [Nm] 15
type precision locknut
used with LOCKNUT-SOCKET-KM11
additional description zacisk promieniowy
country of origin Switzerland
mass moment of inertia [kg*cm²] 4.89
mounting torque [Nm] 85
breaking load, axial 415000
breakawag [Nm] 130

Technical materials

Product's substitutes
Product
dimensions
availability
Net price
HIR50 HIWIN

HIR50 HIWIN

 Precision locknut

50 x 70 x 14

in stock

Plewiska: 18 pcs

Log in to see prices
KMK 10 SKF

KMK 10 SKF

 Locknut

50 x 70 x 15

in stock

Plewiska: 18 pcs

Log in to see prices
ZM50 CSC

ZM50 CSC

 Precision locknut

50 x 70 x 14

in stock

3-4 days: 3 pcs

Log in to see prices
ZM 50 SWISS

ZM 50 SWISS

 Precision locknut

50 x 70 x 14
ZM50 INA

ZM50 INA

 Precision locknut

50 x 70 x 14

in stock

Plewiska: 45 pcs

Log in to see prices
ZMA 50/75 SWISS

ZMA 50/75 SWISS

 Precision locknut

50 x 75 x 25
ZMA 50/92 SWISS

ZMA 50/92 SWISS

 Precision locknut

50 x 92 x 32
ZMA50/92 INA

ZMA50/92 INA

 Precision locknut

50 x 92 x 32

in stock

Plewiska: 6 pcs

Log in to see prices
