PUN-H-6X1-NT FESTO

197377 FESTO

dimensions

4 x 6 x 0

Weight

0.021 kg

colour

natural

country of origin

Czech Republic

hardness

52 +/- 3 ShD

material

TPE-U(PU)

pneumatic connector

QS-6

type

Plastic tubing

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com

Details Attributes

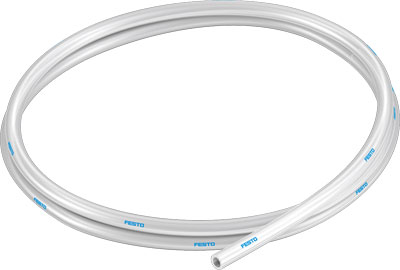

PUN-H-6X1-NT FESTO

Plastic tubing

Data sheet:

Name: PUN-H-6X1-NT FESTO
Rating: 4.6 (8 reviews)

Feature	Value
Outside diameter	6 mm
Bending radius relevant for flow rate	26 mm
Inside diameter	4 mm
Min. bending radius	10 mm
Tubing characteristics	Suitable for energy chains in applications with high cycle rates
Tubing test conditions	Suitable for energy chains: > 5 million cycles to FN 942021
Temperature dependent operating pressure	-0.95 ... 10 bar
Authorisation	TÜV
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Material fire test	UL94 HB
Food-safe	See Supplementary material information
Ambient temperature	-35 ... 60 °C
Product weight according to length	0.0183 kg/m
Pneumatic connection	For push-in connector outside diameter 6 mm for barbed connector internal diameter 4 mm with nut
Colour	neutral
Shore hardness	D 52 +/-3
Materials note	Free of copper and PTFE Conforms to RoHS
Material tubing	TPE-U(PU)

Attributes

manufacturer	FESTO
dimensions	4 x 6 x 0
Weight	0.021 kg
colour	natural
material	TPE-U(PU)
hardness	52 +/- 3 ShD
type	Plastic tubing
country of origin	Czech Republic
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com
pneumatic connector	QS-6
