Name: R1066-630-40 Bosch Rexroth
Rating: 5 (8 reviews)

R1066-630-40 Bosch Rexroth

LSGE-A-30-DD Bosch Rexroth LSGE-A-30-DD Bosch Rexroth

dimensions

30 x 84 x 68

Weight

1.215 kg

acceleration [m/s2]

150

additional description

The dynamic load capacities are based on a total travel of 100km. When based on 50km, the C values in the table are to be multiplied by 1.26

additional description

load capacity when both linear bushings are under equal load

bearing grease

without initial lubrication

breakaway force [N]

cage

steel

country of origin

Romania

dynamic load rating [N]

5860

d [mm]

D [mm]

F - height to the axis [mm]

Details Attributes Works with

R1066-630-40 Bosch Rexroth

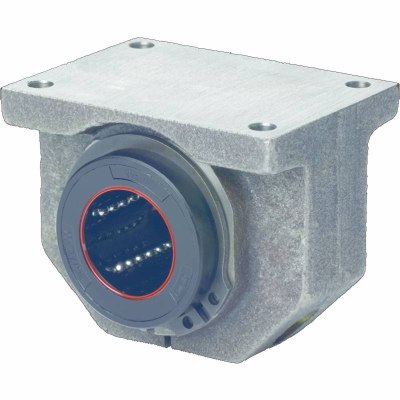

Linear ball bearing unit

precision housing (lamellar graphite cast iron/steel) with super linear bushing A with self-alignment feature

Attributes

manufacturer	Bosch Rexroth
dimensions	30 x 84 x 68
Weight	1.215 kg
d [mm]	30
D [mm]	47
F - height to the axis [mm]	35
H [mm]	70
L [mm]	68
norm	EU
bearing grease	without initial lubrication
operating temperature	-10÷80°C
type	Linear ball bearing unit
sealing	two-sided plastic
W [mm]	84
J [mm]	68
K [mm]	45
additional description	The dynamic load capacities are based on a total travel of 100km. When based on 50km, the C values in the table are to be multiplied by 1.26
additional description	load capacity when both linear bushings are under equal load
max. velocity [m/s]	5
acceleration [m/s2]	150
dynamic load rating [N]	5860
static load rating [N]	3570
cage	steel
country of origin	Romania
breakaway force [N]	6
