You are here: Linear motion Linear bearings Linear ball bearings LBCR 16 D-LS EWELLIX

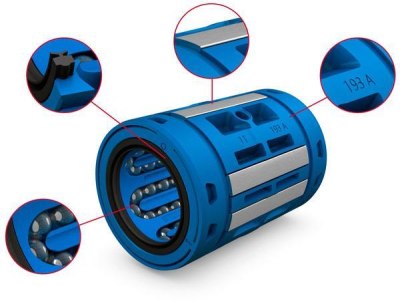

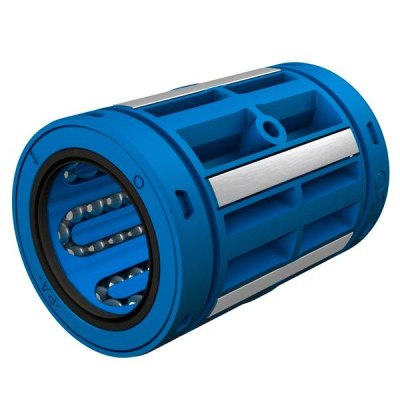

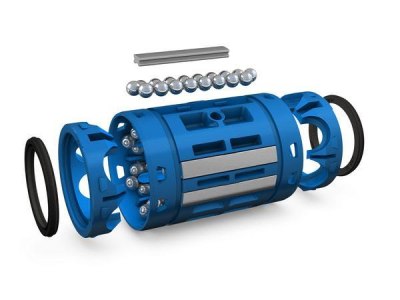

Linear ball bearing

LBCR 16 D-LS EWELLIX

dimensions	16 x 26 x 36
Weight	0.026 kg
additional description	nasmarowane fabrycznie
cage	polyamide
dynamic load rating [N]	1600
d [mm]	16
D [mm]	26
flange	no
L [mm]	36
norm	EU
sealing	one-sided plastic, contact
static load rating [N]	1290
type	Linear ball bearing

EWELLIX

Attributes Substitutes (2) Works with

LBCR 16 D-LS EWELLIX

Linear ball bearing

Log in to ask for price and availability

Attributes

manufacturer	EWELLIX
dimensions	16 x 26 x 36
Weight	0.026 kg
d [mm]	16
D [mm]	26
flange	no
L [mm]	36
norm	EU
type	Linear ball bearing
sealing	one-sided plastic, contact
used with	2201558
used with	2201568
used with	2201569
used with	2201582
used with	2201598
used with	2201591
additional description	nasmarowane fabrycznie
dynamic load rating [N]	1600
static load rating [N]	1290
cage	polyamide

Technical materials

Product's substitutes

R0672-116-40 Bosch Rexroth

R0672-116-40 Bosch Rexroth

Linear ball bearing

16 x 26 x 36

Log in to ask for price and availability

TK16UST NB

TK16UST NB

Linear ball bearing

16 x 26 x 36

Log in to ask for price and availability

Works with

W16h6 /3000

W16h6 /3000

Precision linear shaft

WH16h7 /6000

WH16h7 /6000

Hollow shaft

W16h6 /0500 INA

W16h6 /0500 INA

Precision linear shaft
