You are here: Linear motion Linear bearings Linear ball bearings LUCD 12 D-2LS EWELLIX

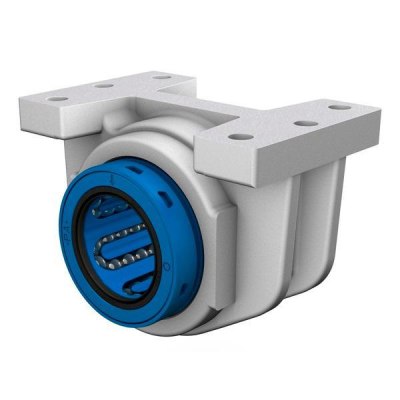

Linear ball bearing unit

LUCD 12 D-2LS EWELLIX

Name: LUCD 12 D-2LS EWELLIX
Rating: 5 (3 reviews)

dimensions	12 x 0 x 32
Weight	0.058 kg
B [mm]	20
dynamic load rating [N]	1080
d [mm]	12
D [mm]	22
F - height to the axis [mm]	18
H [mm]	34.5
J [mm]	32
K [mm]	23
L [mm]	32
norm	EU
sealing	single-lip seal

Attributes Works with

LUCD 12 D-2LS EWELLIX

Linear ball bearing unit

Attributes

manufacturer	EWELLIX
dimensions	12 x 0 x 32
Weight	0.058 kg
B [mm]	20
d [mm]	12
D [mm]	22
F - height to the axis [mm]	18
H [mm]	34.5
L [mm]	32
norm	EU
type	Linear ball bearing unit
sealing	single-lip seal
W [mm]	52
used with	2201567
used with	2201597
used with	2201581
used with	2201590
used with	2201556
J [mm]	32
K [mm]	23
dynamic load rating [N]	1080
static load rating [N]	815
