You are here: Linear motion Linear bearings Linear ball bearings LUCD 30 D-2LS EWELLIX

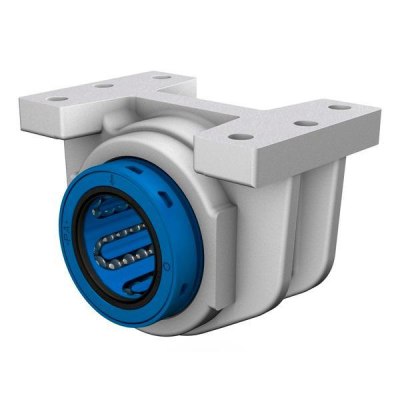

Linear ball bearing unit

LUCD 30 D-2LS EWELLIX

Name: LUCD 30 D-2LS EWELLIX
Rating: 4.6 (10 reviews)

dimensions	30 x 0 x 68
Weight	0.48 kg
B [mm]	48
country of origin	Germany
dynamic load rating [N]	4650
d [mm]	30
D [mm]	47
F - height to the axis [mm]	35
H [mm]	67
J [mm]	68
K [mm]	45
L [mm]	68
norm	EU

Plewiska (20)

on stock

Attributes Works with

LUCD 30 D-2LS EWELLIX

Linear ball bearing unit

Attributes

manufacturer	EWELLIX
dimensions	30 x 0 x 68
Weight	0.48 kg
B [mm]	48
d [mm]	30
D [mm]	47
F - height to the axis [mm]	35
H [mm]	67
L [mm]	68
norm	EU
type	Linear ball bearing unit
sealing	single-lip seal
W [mm]	88
used with	2201586
used with	2201561
used with	2201601
used with	2201574
used with	2201575
J [mm]	68
K [mm]	45
dynamic load rating [N]	4650
static load rating [N]	3250
country of origin	Germany
