You are here: Linear motion Linear bearings Linear ball bearings LUCT 80 EWELLIX

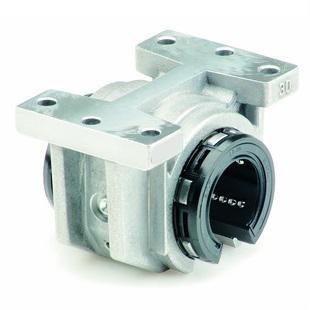

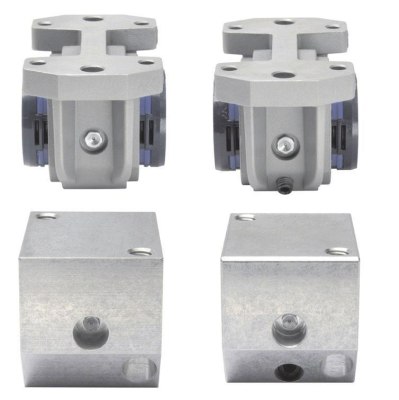

Linear ball bearing unit

LUCT 80 EWELLIX

Name: LUCT 80 EWELLIX
Rating: 4.5 (11 reviews)

dimensions	80 x 0 x 165
Weight	4.512 kg
dynamic load rating [N]	37500
d [mm]	80
D [mm]	120
F - height to the axis [mm]	80
H [mm]	140
J [mm]	170
K [mm]	90
L [mm]	165
norm	EU
sealing	none
static load rating [N]	32000

Attributes Substitutes (1) Works with

LUCT 80 EWELLIX

Linear ball bearing unit

Attributes

manufacturer	EWELLIX
dimensions	80 x 0 x 165
Weight	4.512 kg
d [mm]	80
D [mm]	120
F - height to the axis [mm]	80
H [mm]	140
L [mm]	165
norm	EU
type	Linear ball bearing unit
sealing	none
W [mm]	205
used with	2201618
used with	2201627
J [mm]	170
K [mm]	90
dynamic load rating [N]	37500
static load rating [N]	32000
