You are here: Bearings Spherical plain bearings and rod ends Rod ends EF 30-20-501 DURBAL
EF 30-20-501
EF 30-20-501
EF 30-20-501
EF 30-20-501

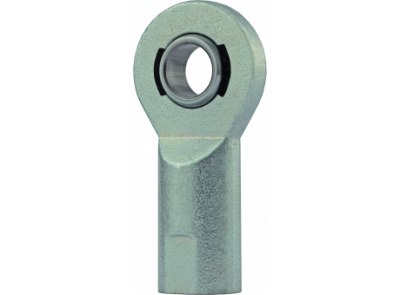

Rod end

EF 30-20-501 DURBAL

dimensions 30 x 0 x 0
Weight 0.91 kg
A - rod end outer diameter [mm] 70
C - outer ring width [mm] 18
clearence 0÷10 µm
country of origin Germany
dynamic load rating [N] 54000
d [mm] 30
F - height to the axis [mm] 110
friction pair chrome steel/PTFE composite
GL - thread length [mm] 51
inner ring width [mm] 22
L - rod head height [mm] 145
Plewiska (4)

on stock
Log in to see the price
Attributes Substitutes (5)

EF 30-20-501 DURBAL

Rod end

Attributes
manufacturer DURBAL
dimensions 30 x 0 x 0
Weight 0.91 kg
A - rod end outer diameter [mm] 70
inner ring width [mm] 22
C - outer ring width [mm] 18
d [mm] 30
F - height to the axis [mm] 110
GL - thread length [mm] 51
thread M30x2
L - rod head height [mm] 145
clearence 0÷10 µm
norm DIN ISO 12240-4 & DIN ISO 8139 serie E
friction pair chrome steel/PTFE composite
type Rod end
sealing none
dynamic load rating [N] 54000
static load rating [N] 141800
product line Classic line
max. tilt angle [°] 6
country of origin Germany
thread 2 internal thread, right

Technical materials

Product's substitutes
Product
dimensions
availability
Net price
DGIR 30 UK DURBAL

DGIR 30 UK DURBAL

 Rod end

30 x 0 x 22
EI 30 D FLURO

EI 30 D FLURO

 Rod end, zinc plated

30 x 0 x 22

in stock

Plewiska: 40 pcs

2 weeks: 35 pcs

Log in to see prices
GIR30-UK INA

GIR30-UK INA

 Rod end

30 x 0 x 0

in stock

Plewiska: 19 pcs

Log in to see prices
GIR30-UK DUNLOP

GIR30-UK DUNLOP

 Rod end

30 x 0 x 0
SI 30 C SKF

SI 30 C SKF

 Rod end

30 x 0 x 0

in stock

Plewiska: 2 pcs

Log in to see prices
