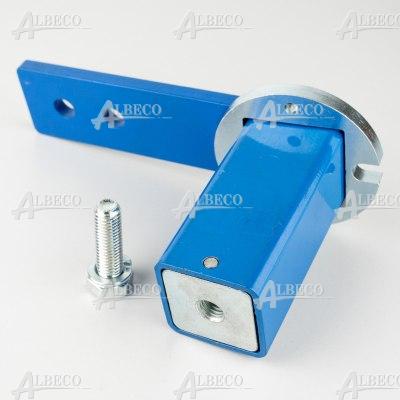

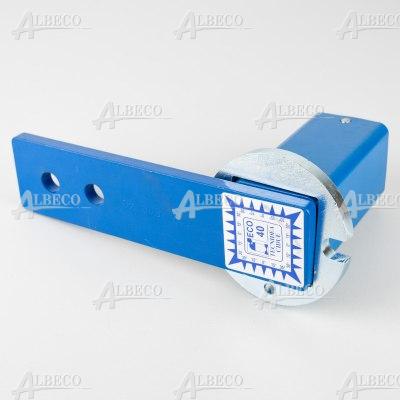

Name: EAR 40 TC2 - Tecnidea Cidue
Rating: 4.9 (5 reviews)

EAR 40 TC2 - Tecnidea Cidue

RE014040 TC2 - Tecnidea Cidue SE 27 ROSTA 06011004 ROSTA TE 5 RESATEC 55000005 RESATEC CHT-E4 CHIARAVALLI 94070004 CHIARAVALLI 14080300 MÄDLER 6021000050 BEA T29422 (prod. Haberkorn) TC2 - Tecnidea Cidue

Weight

1.323 kg

additional description

The standard type of rotational tensioner

country of origin

Italy

includes

Tensioner, contrast ring, mounting screw (1 pc.)

material

steel

max. tensioning torque [Nm]

111.8

max. tilt angle [°]

mounting hole for tensioning element

12.5

operating temperature

-40÷80°C

product feature

ECO

size

CRESA 40 (RST 27)

stroke [mm]

Attributes Substitutes (4)

EAR 40 TC2 - Tecnidea Cidue

Rotational tensionser, ECO

Attributes

manufacturer	TC2 - Tecnidea Cidue
dimensions	0 x 0 x 0
Weight	1.323 kg
material	steel
stroke [mm]	65
operating temperature	-40÷80°C
type	Rotational tensionser
working principle	Rubber cylinders deflection
includes	Tensioner, contrast ring, mounting screw (1 pc.)
additional description	The standard type of rotational tensioner
product feature	ECO
max. tilt angle [°]	30
country of origin	Italy
max. tensioning torque [Nm]	111.8
mounting hole for tensioning element	12.5
size	CRESA 40 (RST 27)
tensioning force range	0÷860
