You are here: Linear motion Linear guides and carriages Profile guides and carriages R1605-764-31 /1298, 40-57 Bosch Rexroth

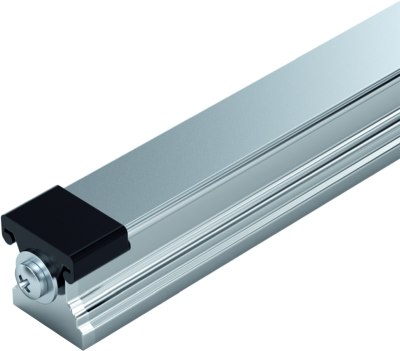

Rail with cover strip

R1605-764-31 /1298, 40-57 Bosch Rexroth

dimensions	0 x 28 x 0
Weight	6.49 kg
d [mm]	9.0
D [mm]	15
h [mm]	28.6
H [mm]	28.55
material	stal hartowana powierzchniowo / taśma: stal sprężynowa odporna na korozję
number of raceways	4
operating temperature	0÷80°C
p - pitch [mm]	80.0
precision	normal accuracy
rail size	30
screw (min. lenght)	ISO4762, M8x30-12.9

Plewiska (4)

on stock

Log in to see the price

Bosch Rexroth

Attributes Works with

R1605-764-31 /1298, 40-57 Bosch Rexroth

Rail with cover strip

Log in to see the price

Attributes

manufacturer	Bosch Rexroth
dimensions	0 x 28 x 0
Weight	6.49 kg
d [mm]	9.0
D [mm]	15
h [mm]	28.6
H [mm]	28.55
number of raceways	4
material	stal hartowana powierzchniowo / taśma: stal sprężynowa odporna na korozję
p - pitch [mm]	80.0
rail size	30
screw (min. lenght)	ISO4762, M8x30-12.9
operating temperature	0÷80°C
type	Rail with cover strip
W [mm]	28
precision	normal accuracy

Technical materials

catalog
