You are here: Bearings Self-aligning bearings Self-aligning bearings with square, hexagonal and tapered bore SPH210-KRR-B INA

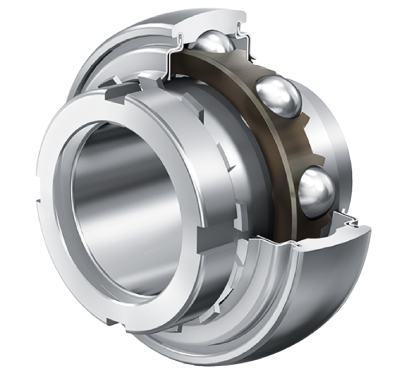

Insert ball bearing with adapter sleeve

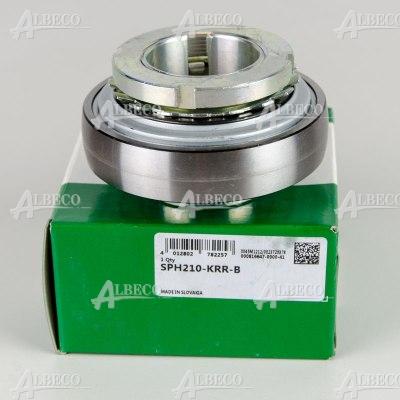

SPH210-KRR-B INA

Name: SPH210-KRR-B INA
Rating: 4.5 (1 reviews)

AZ 19.431 JOHN DEERE AZ 19.431 JOHN DEERE

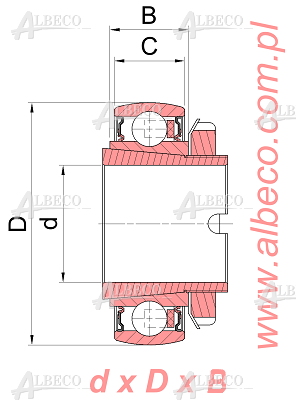

dimensions	40 x 90 x 30
Weight	0.93 kg
C - outer ring width (insert bearing) [mm]	20
cage	polyamide
clearence	C3 - greater than normal
country of origin	Vietnam
dynamic load rating [N]	35000
d [mm]	40
D [mm]	90
inner ring width [mm]	30
rounded outer ring	yes
sealing	double-sided lip seal covered with a plate
static load rating [N]	22700

Plewiska (22)

on stock

Attributes Substitutes (1)

SPH210-KRR-B INA

Insert ball bearing with adapter sleeve

Attributes

manufacturer	INA
dimensions	40 x 90 x 30
Weight	0.93 kg
inner ring width [mm]	30
C - outer ring width (insert bearing) [mm]	20
d [mm]	40
D [mm]	90
clearence	C3 - greater than normal
T [mm]	50
type	Insert ball bearing with adapter sleeve
sealing	double-sided lip seal covered with a plate
rounded outer ring	yes
dynamic load rating [N]	35000
static load rating [N]	22700
cage	polyamide
taper	taper 1:12
country of origin	Vietnam
