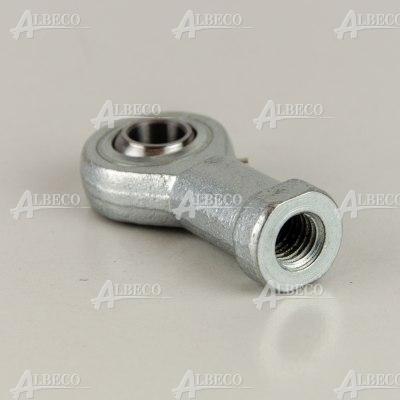

Rod end with integral self-aligning ball bearing

BRF 10-00-501 DURBAL

Name: BRF 10-00-501 DURBAL
Rating: 4.6 (13 reviews)

Attributes Substitutes (1)

BRF 10-00-501 DURBAL

Rod end with integral self-aligning ball bearing

Attributes

manufacturer	DURBAL
dimensions	10 x 0 x 0
Weight	0.073 kg
A - rod end outer diameter [mm]	28
inner ring width [mm]	14
C - outer ring width [mm]	10.5
d [mm]	10
F - height to the axis [mm]	43
GL - thread length [mm]	20
thread	M10
L - rod head height [mm]	57
clearence	10÷30 µm
norm	DIN ISO 12240-4 & DIN ISO 8139 serie K
max. velocity [rpm]	1225
friction pair	self-aligning ball bearing
type	rod end with integral self-aligning ball bearing
sealing	double-sided non-contact shields
Dynamic load rating [N]	4500
static load rating [N]	1500
cage	none
product line	Premium line
max. tilt angle [°]	8
thread 2	internal thread, right
