You are here: Linear motion Linear bearings Linear ball bearings R0670-216-40 Bosch Rexroth
0670-216-40
0670-216-40
0670-216-40
0670-216-40

Linear ball bearing

R0670-216-40 Bosch Rexroth

KBA-16-DD Bosch Rexroth
dimensions 16 x 26 x 36
Weight 0.034 kg
acceleration [m/s2] 150
additional description The dynamic load capacities are based on a total travel of 100km. When based on 50km, the C values in the table are to be multiplied by 1.26
bearing grease without initial lubrication
breakaway force [N] 2
cage plastic
country of origin Romania
Dynamic load rating [N] 1400
d [mm] 16
D [mm] 26
flange no
friction coefficient 0.001 ... 0.0025
Plewiska (120)

on stock
Olsztyn (8)

on stock
Katowice (2)

on stock
Log in to see the price
Details Attributes Substitutes (6) Works with

R0670-216-40 Bosch Rexroth

Linear ball bearing

low-cost linear bushing for high requirements

  • steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life
Attributes
manufacturer Bosch Rexroth
dimensions 16 x 26 x 36
Weight 0.034 kg

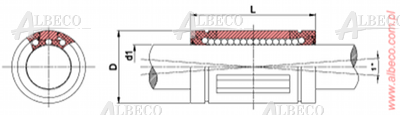

d [mm] 16
D [mm] 26
flange no
L [mm] 36
L1 [mm] 24.6
L2 [mm] 1.3
material outer sheath made of plastic
norm EU
bearing grease without initial lubrication
operating temp. -10÷80°C
type Linear ball bearing
sealing two-sided plastic
additional description The dynamic load capacities are based on a total travel of 100km. When based on 50km, the C values in the table are to be multiplied by 1.26
max. velocity [m/s] 5
acceleration [m/s2] 150
Dynamic load rating [N] 1400
cage plastic
country of origin Romania
rolling element material AISI 52100 =100Cr6 =DIN1.3505 =ŁH15 =SUJ2
friction coefficient 0.001 ... 0.0025
breakaway force [N] 2
Product's substitutes
Product
dimensions
availability
Net price
KN16-B-PP INA

KN16-B-PP INA

 Linear ball bearing

16 x 26 x 36

in stock

Plewiska: 41 pcs

Katowice: 10 pcs

Log in to see prices
BBET16UU SNR

BBET16UU SNR

 Linear ball bearing

16 x 26 x 36

in stock

Plewiska: 23 pcs

2 weeks: 79 pcs

Log in to see prices
KS16-PP INA

KS16-PP INA

 Linear ball bearing

16 x 26 x 36

in stock

Plewiska: 339 pcs

Olsztyn: 10 pcs

Log in to see prices
LBCD 16 D-2LS EWELLIX

LBCD 16 D-2LS EWELLIX

 Linear ball bearing

16 x 26 x 36

in stock

Plewiska: 41 pcs

Log in to see prices
LMES16UU SAMICK

LMES16UU SAMICK

 Linear ball bearing

16 x 26 x 36

in stock

Plewiska: 30 pcs

Log in to see prices
TK16UU NB

TK16UU NB

 Linear ball bearing

16 x 26 x 36

in stock

Plewiska: 25 pcs

2-3 weeks: 17 pcs

Log in to see prices
Works with
Product
W16h6 /3000

W16h6 /3000

 Precision linear shaft

Variants
WH16h7 /6000

WH16h7 /6000

 Hollow shaft

Variants
W16h6 /0500 INA

W16h6 /0500 INA

 Precision linear shaft

Variants
