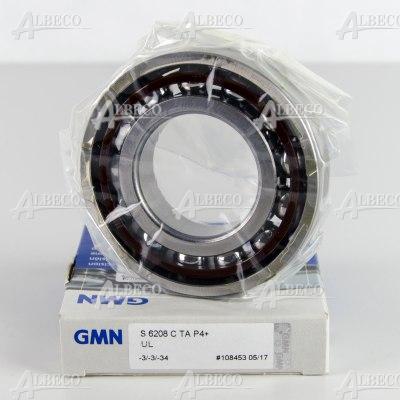

Name: S6208 C TA P4+ UL GMN
Rating: 4.7 (8 reviews)

S6208 C TA P4+ UL GMN

dimensions

40 x 80 x 18

Weight

0.371 kg

bearing arrangement

for universal matching

cage

textolite, outer ring centred

contact angle [°]

Dw - rolling element diameter [mm]

11.906

Dynamic load rating [N]

36500

limiting/attainable speed, grease [rpm]

21500

limiting/attainable speed, oil [rpm]

28500

precision

better than P4

preload

light preload

product feature

high precision bearing

rings material

steel

Attributes Substitutes (13)

S6208 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

Attributes

manufacturer	GMN
dimensions	40 x 80 x 18
Weight	0.371 kg
type	single row angular-contact ball bearing
product feature	high precision bearing
Dynamic load rating [N]	36500
static load rating [N]	26000
contact angle [°]	15
cage	textolite, outer ring centred
preload	light preload
bearing arrangement	for universal matching
precision	better than P4
Dw - rolling element diameter [mm]	11.906
limiting/attainable speed, oil [rpm]	28500
limiting/attainable speed, grease [rpm]	21500
rolling element material	big steel balls
rings material	steel

Technical materials

leaflet

Product's substitutes

7208 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 19 pcs

7208CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 6 pcs

7208CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 1 pcs

2 weeks: 18 pcs

S6208 C TXM P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

7208CTRDULP3 NSK

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

in stock

Plewiska: 2 pair

7208 CYDU/GL P4 NACHI

Single row deep groove ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

in stock

Plewiska: 6 pair

7208 CYU/GL P4 NACHI

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

B7208-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

B7208-C-T-P4S-K5-UL FAG

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

B7208-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 24 pcs

Olsztyn: 4 pcs

B7208-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 2 pcs

3-4 days: 115 pcs

E 240 7PE1UL SNFA

Single row angular-contact ball bearing

40 x 80 x 18

S6208 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

in stock

Plewiska: 5 pair
