dimensions | 60 x 110 x 65.1 |
Weight | 1.456 kg |
C - outer ring width (insert bearing) [mm] | 24 |
cage | polyamide |
clearence | C3 - greater than normal |
country of origin | Slovakia / Vietnam |
Dynamic load rating [N] | 56000 |
D [mm] | 110 |
d [mm] | 60 |
inner ring width [mm] | 65.1 |
rounded outer ring | yes |
sealing | double-sided lip seal covered with a plate |
static load rating [N] | 36000 |

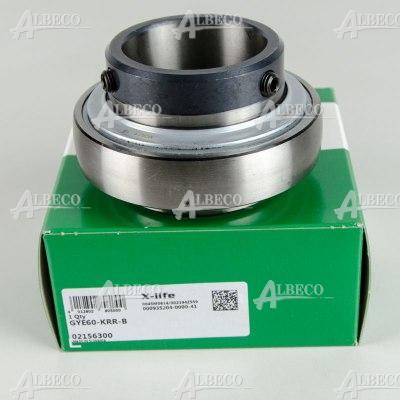

GYE60-XL-KRR-B INA
Insert ball bearing
manufacturer | INA |
dimensions | 60 x 110 x 65.1 |
Weight | 1.456 kg |
inner ring width [mm] | 65.1 |
C - outer ring width (insert bearing) [mm] | 24 |
d [mm] | 60 |
D [mm] | 110 |
clearence | C3 - greater than normal |
type | insert ball bearing |
sealing | double-sided lip seal covered with a plate |
rounded outer ring | yes |
Dynamic load rating [N] | 56000 |
static load rating [N] | 36000 |
cage | polyamide |
country of origin | Slovakia / Vietnam |
Technical materials
Plewiska: 10 pcs
Plewiska: 14 pcs
Plewiska: 55 pcs
Plewiska: 153 pcs
Olsztyn: 6 pcs
Plewiska: 40 pcs
Katowice: 1 pcs
Olsztyn: 10 pcs
1 week: 55 pcs
Plewiska: 23 pcs
3-4 weeks: 17 pcs
Plewiska: 25 pcs
1 day: 54 pcs
2 weeks: 93 pcs
Plewiska: 42 pcs
1 day: 78 pcs
2 weeks: 98 pcs
Plewiska: 327 pcs
Katowice: 17 pcs
Olsztyn: 26 pcs
1 day: 1455 pcs
2 weeks: 92 pcs
UC212G2T04 SNR
Insert ball bearing (operating temp.: -40÷100°C)C - outer ring width (insert bearing) [mm]: 27
UC212G2T20 SNR
Insert ball bearing (operating temp.: -20÷200°C)C - outer ring width (insert bearing) [mm]: 27
Plewiska: 59 pcs
1 day: 70 pcs
2 weeks: 28 pcs
UC212HT2D1 NTN
Insert ball bearing (operating temp.: max. 180°C)C - outer ring width (insert bearing) [mm]: 27
Plewiska: 2 pcs
2 weeks: 34 pcs
Olsztyn: 1 pcs
Katowice: 2 pcs
1 day: 64 pcs
YAR 212-2FW/VA201 SKF
Insert ball bearing (operating temp.: max. 250°C)C - outer ring width (insert bearing) [mm]: 26
YAR 212-2FW/VA228 SKF
Insert ball bearing (operating temp.: max. 350°C)C - outer ring width (insert bearing) [mm]: 26
1 day: 5 pcs
HUA151-4M12-S01 SNR
71-L KUKKO
GISW 12 FLURO
IL60-140/5T-B37 FKL
