Single row angular-contact ball bearing, high precision bearing
dimensions | 120 x 165 x 22 |
Weight | 1.37 kg |
bearing arrangement | for universal matching |
cage | phenol resin, guided on the outer ring |
contact angle [°] | 25 |
country of origin | Germany |
Dynamic load rating [N] | 72000 |
limiting/attainable speed, grease [rpm] | 7000 |
limiting/attainable speed, oil [rpm] | 11000 |
precision | better than P4 |
preload | light preload |
product feature | high precision bearing |
sealing | none |

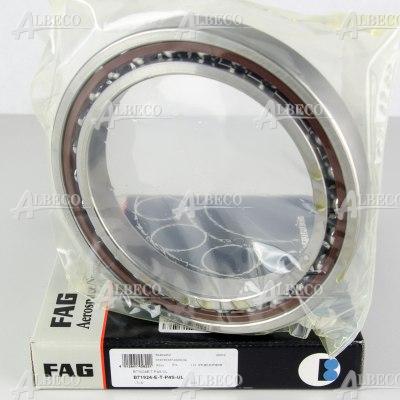

B71924-E-T-P4S-UL FAG
Single row angular-contact ball bearing, high precision bearing
manufacturer | FAG |
dimensions | 120 x 165 x 22 |
Weight | 1.37 kg |
type | single row angular-contact ball bearing |
sealing | none |
product feature | high precision bearing |
Dynamic load rating [N] | 72000 |
static load rating [N] | 56000 |
contact angle [°] | 25 |
cage | phenol resin, guided on the outer ring |
preload | light preload |
bearing arrangement | for universal matching |
precision | better than P4 |
country of origin | Germany |
limiting/attainable speed, oil [rpm] | 11000 |
limiting/attainable speed, grease [rpm] | 7000 |
