You are here: Bearing housings and units Bearing units Units with pressed steel housing PB30-XL INA

Housing units, sheet steel

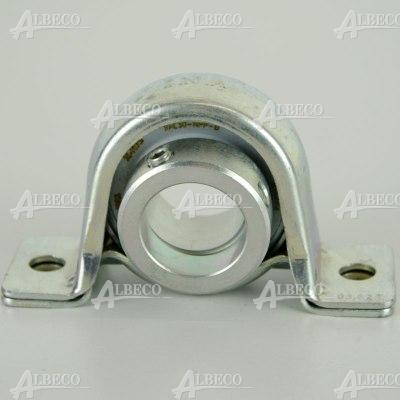

PB30-XL INA

Name: PB30-XL INA
Rating: 4.8 (5 reviews)

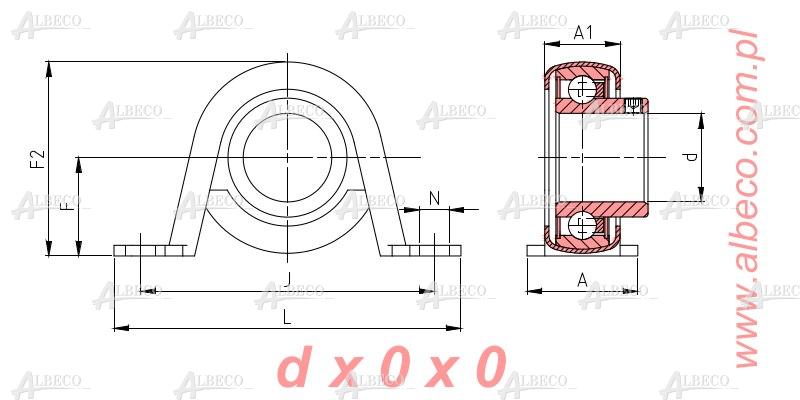

dimensions	30 x 0 x 0
Weight	0.527 kg
A1 [mm]	26.5
A [mm]	38
cage	polyamide
clearence	C3 - greater than normal
dynamic load rating [N]	19500
d [mm]	30
F2 [mm]	66.1
F [mm]	33.3
J [mm]	95
L [mm]	117.5
sealing	double-sided lip seal covered with a plate

Attributes Substitutes (2)

PB30-XL INA

Housing units, sheet steel

Attributes

manufacturer	INA
dimensions	30 x 0 x 0
Weight	0.527 kg
A [mm]	38
d [mm]	30
F [mm]	33.3
L [mm]	117.5
clearence	C3 - greater than normal
type	Housing units, sheet steel
sealing	double-sided lip seal covered with a plate
A1 [mm]	26.5
J [mm]	95
F2 [mm]	66.1
dynamic load rating [N]	19500
static load rating [N]	11300
cage	polyamide
