FCMN1601 ERRE.DI.

dimensions

16 x 47 x 30

Weight

0.236 kg

additional description

final holding/braking force depends on the lubrication medium used

additional description

manual element for round guides

additional description

Floating contact parts ensure a symmetrical distribution of the force on the guide

A [mm]

B [mm]

country of origin

Italy

drive

manual

dynamic braking function

D [mm]

E [mm]

F [mm]

Details Attributes

FCMN1601 ERRE.DI.

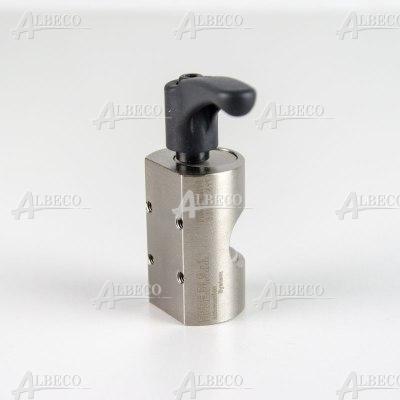

Shaft clamping element, nickel plated

Manual clamping element for linear guides

simple and reliable, this clamping element is manually controlled
by acting on the adjustable locking lever, the contact profiles clamp in sync on the surfaces of the bar
the floating profiles of contact ensure a symmetrical distribution of the force on the round bar or guide
ergonomic design

Attributes

manufacturer	ERRE.DI.
dimensions	16 x 47 x 30
Weight	0.236 kg
A [mm]	47
B [mm]	30
D [mm]	26
E [mm]	22
F [mm]	17
GL - thread length [mm]	5
thread	M4
holding force [N]	1200
shaft diameter [mm]	16
operating temperature	-20÷80°C
type	Shaft clamping element
used with	f7÷h6 tolerance shaft, min. surface hardness 54HRC
working principle	Bistable - remains in current state
additional description	final holding/braking force depends on the lubrication medium used
additional description	manual element for round guides
additional description	Floating contact parts ensure a symmetrical distribution of the force on the guide
product feature	nickel plated
G1 [mm]	17
country of origin	Italy
drive	manual
dynamic braking function	no
