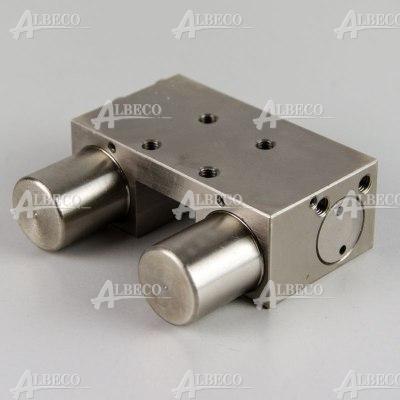

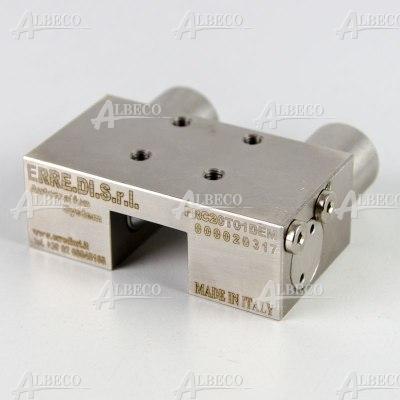

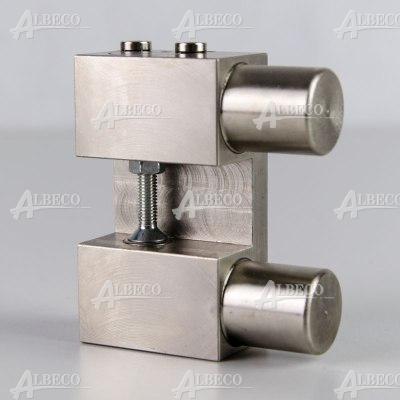

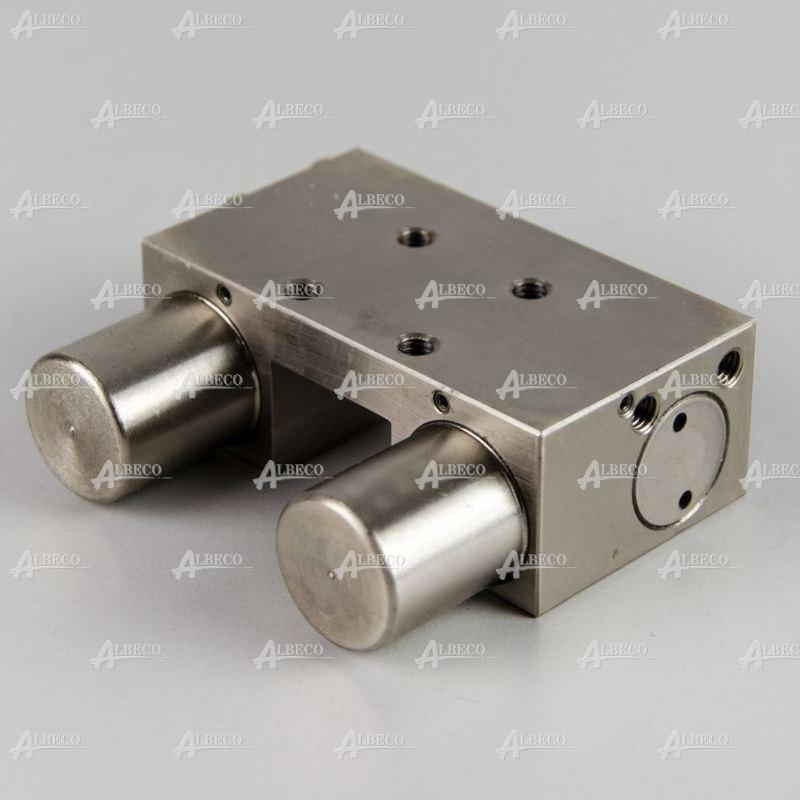

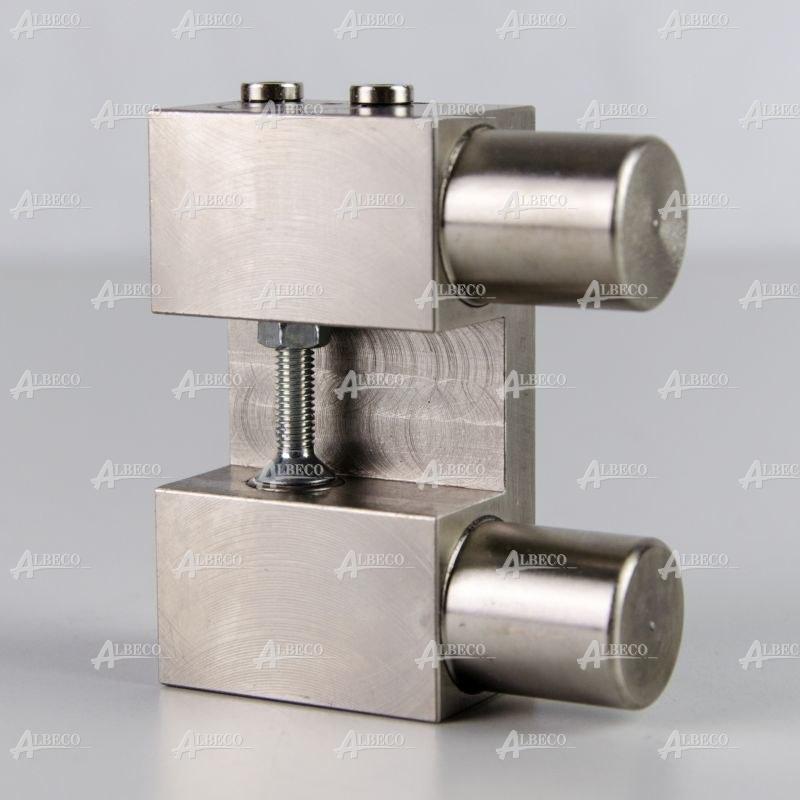

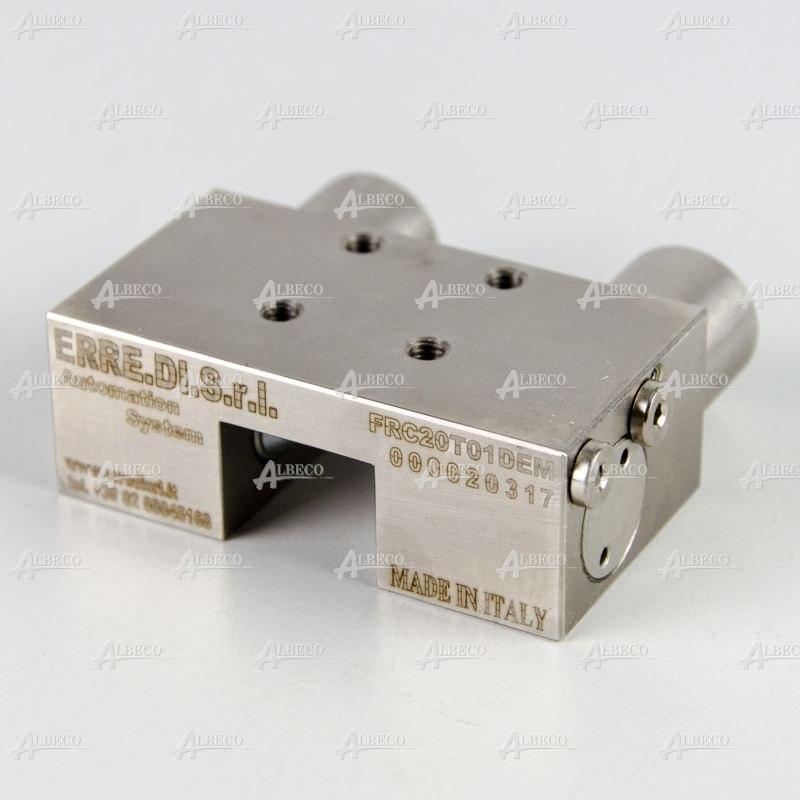

Pneumatic clamping element

Attributes

manufacturer	ERRE.DI.
dimensions	20 x 70 x 61
Weight	0.43 kg
A [mm]	70
B [mm]	39
working pressure [bar]	5,5÷8
D [mm]	25.5
F [mm]	20
GL - thread length [mm]	5
thread	M5
H [mm]	14
L [mm]	61
rail size	20
holding force [N]	600
operating temperature	-20÷80°C
surface hardness	60÷62HRC
type	Linear rail clamping element
used with	RG (QR) (HIWIN)
used with	KUSE (INA)
used with	SBI (SBC LINEAR)
used with	MSA (PMI)
used with	LGB (SNR)
used with	TRH / TRS / TRC (TBI)
used with	NS (NSK)
used with	LSD (AirTAC)
used with	EG (QE) (HIWIN)
used with	MSB (PMI)
used with	SR (SSR) (THK)
used with	LLT (EWELLIX)
used with	KLLT (INA)
used with	NH (NSK)
used with	LSH (AirTAC)
used with	HG (QH) (HIWIN)
used with	HSR (HSV) (THK)
used with	SHS (THK)
working principle	NC - Normally closed with pneumatic force assist
additional description	final holding/braking force depends on the lubrication medium used
additional description	standard clamping element
product feature	nickel plated
G1 [mm]	20
drive	pneumatic
nominal pressure [bar]	6
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
pneumatic connector	M5
switching time [ms]	40÷60
dynamic braking function	no
pneumatic power-up holding force [N]	1600
