Name: TIH 030M/230V SKF
Rating: 5 (10 reviews)

TIH 030M/230V SKF

dimensions

460 x 200 x 260

Weight

22.022 kg

country of origin

Netherlands

includes

TIH 030-Y2 yoke 14 × 14 × 215 mm (0.5 × 0.5 × 8.5 in)

includes

TIH 030-Y4 yoke 28 × 28 × 215 mm (1.1 × 1.1 × 8.5 in)

includes

TIH P20 Magnetic probe type K

includes

TIH 030-Y7 yoke 45 × 45 × 215 mm (1.8 × 1.8 × 8.5 in)

includes

pilot TIH RC

includes

pasta LGAF 3E

includes

rękawice TMBA G11

max. bearing weight [kg]

max. outside diameter of heating part [mm]

300

min. inside diameter of heating part [mm]

Details Attributes Substitutes (4)

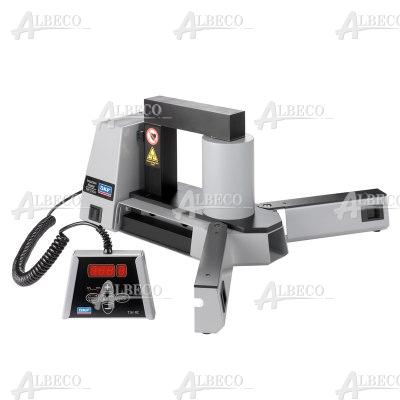

TIH 030M/230V SKF

Induction heater

The SKF TIH 030M is a small induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications. Supplied with three yokes and foldable support arms, the heater is capable of heating bearings with a bore diameters of 20 mm or more and with a maximum weight of 40 kg.

Easy and safe to use with automatic temperature control or time controlled heating.
Automatic demanetization reduces risk of bearing contamination.
Suitable for non-bearing applications for workpieces weihin up to 20 kg.
Automatic temperature hold function to keep the bearing hot after completion of the heatin cycle

Attributes

manufacturer	SKF
dimensions	460 x 200 x 260
Weight	22.022 kg
max. bearing weight [kg]	40
max. outside diameter of heating part [mm]	300
min. inside diameter of heating part [mm]	20
type	induction heater
includes	TIH 030-Y2 yoke 14 × 14 × 215 mm (0.5 × 0.5 × 8.5 in)
includes	TIH 030-Y4 yoke 28 × 28 × 215 mm (1.1 × 1.1 × 8.5 in)
includes	TIH P20 Magnetic probe type K
includes	TIH 030-Y7 yoke 45 × 45 × 215 mm (1.8 × 1.8 × 8.5 in)
includes	pilot TIH RC
includes	pasta LGAF 3E
includes	rękawice TMBA G11
power [kVA]	2
operating area [mm]	100 x 135
country of origin	Netherlands
