The SKF Shaft Alignment Tool TKSA 51 provides high measurement flexibility and performance, suitable for entry-level to expert alignment jobs. Designed to work with the SKF shaft alignment apps on a tablet or smart phone, this intuitive tool is easy to use and requires no special training. The included accessories enable use of the TKSA 51 for a wide range of alignment applications with horizontal and vertical shafts, such as motors, drives, fans, pumps, gearboxes and more. The apps include tutorial videos to show operators how to perform accurate measurements.
- Measurement flexibility - The well-known, three-position measurement gains additional flexibility as measurements can start at any angle and require a total minimal rotation of only 40 degrees.
- This enables operators to perform alignments of applications with limited space.
- Automatic reports - Alignment reports are generated automatically and can be customised with notes, a machine picture and a signature via touchscreen.
- The reports can easily be exported as PDF files and shared with other mobile apps.
- Comprehensive and compact - A range of included components such as magnetic mounting brackets, extension rods and chains, increase the TKSA 51's versatility, yet it remains compact, lightweight and easy to carry.

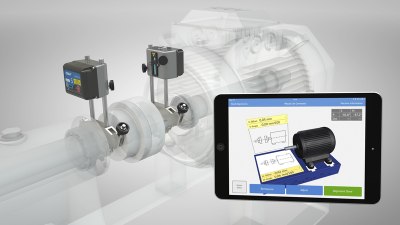

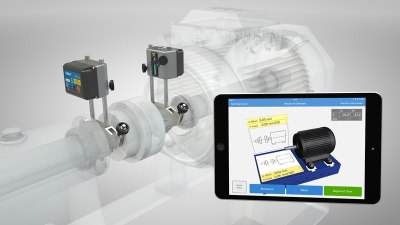

- 3-D live view - This feature enables intuitive positioning of the heads for quick alignment measurements and displays the horizontal and vertical alignment correction live.
- The apps enable 3-D rotation of the virtual motor to correspond with the actual machine position view.
- Disturbance compensation - Measurement values are averaged over time to provide greater accuracy in presence of external disturbances.
- Free apps and demonstration mode - The alignments apps are available for free in the app stores.
- They feature a fully function demonstration mode and tutorial videos for performing alignments.
