Name: TMBS 150E SKF
Rating: 5 (9 reviews)

TMBS 150E SKF

Weight

18.238 kg

arm length [mm]

capacity [t]

country of origin

Taiwan

includes

TMHS 100 SKF

includes

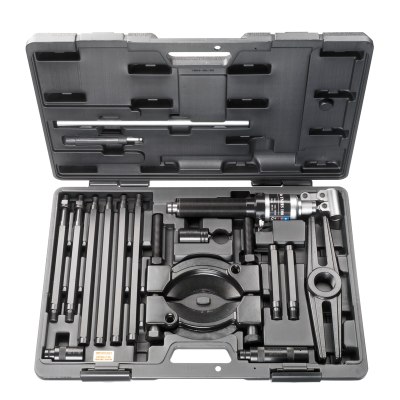

1x separator set, 2x main rods, 2x extension rods 125 mm, 4x extension rods 285 mm, 1x beam, 1x hydraulic spindle (TMHS 100), 2x extension pieces for hydraulic spindle with 50 and 100 mm, 1x nosepiece with centre point for hydraulic spindle

shaft diameter [mm]

35÷150

stroke [mm]

type

bearing separator

Details Attributes

TMBS 150E SKF

Bearing separator

The SKF TMBS 150E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a long reach. The puller is operated with a hydraulic spindle for effortless dismounting up to 100 kN (11.2 US ton). A special separator design is used that can be easily inserted between the bearing and the shoulder on the shaft.

Easily separator placement between bearing and shoulder on the shaft
Spring-loaded centre point of spindle allows easy puller centring and minimises the risk of shaft damage
Hydraulic spindle with safety valve for safe and effortless dismounting
Firm grip behind the bearing's inner ring reduces the force required to dismount the bearing
Quick adaptation to required pulling length with 2x hydraulic spindle extension pieces and extension rods for pullings lengths up to 816 mm (32.1 in.)

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	18.238 kg
capacity [t]	10
stroke [mm]	80
shaft diameter [mm]	35÷150
type	bearing separator
includes	TMHS 100 SKF
includes	1x separator set, 2x main rods, 2x extension rods 125 mm, 4x extension rods 285 mm, 1x beam, 1x hydraulic spindle (TMHS 100), 2x extension pieces for hydraulic spindle with 50 and 100 mm, 1x nosepiece with centre point for hydraulic spindle
arm length [mm]	0
country of origin	Taiwan
