Name: TKBA 10 SKF
Rating: 4.6 (8 reviews)

TKBA 10 SKF

Weight

1.54 kg

battery life

25 hours continuous operation.

includes

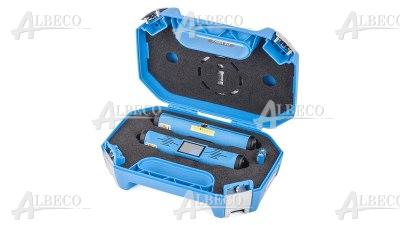

1x TKBA 10 transmitter unit, 1x TKBA 10 receiver unit, 2x AAA batteries, 1x Printed instructions for use, 1x Calibration certificate

material

aluminium

protection class IP

IP40

type

Pulley alignment tool

Details Attributes Substitutes (8)

TKBA 10 SKF

Pulley alignment tool

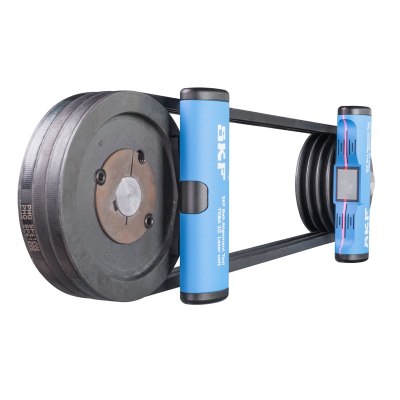

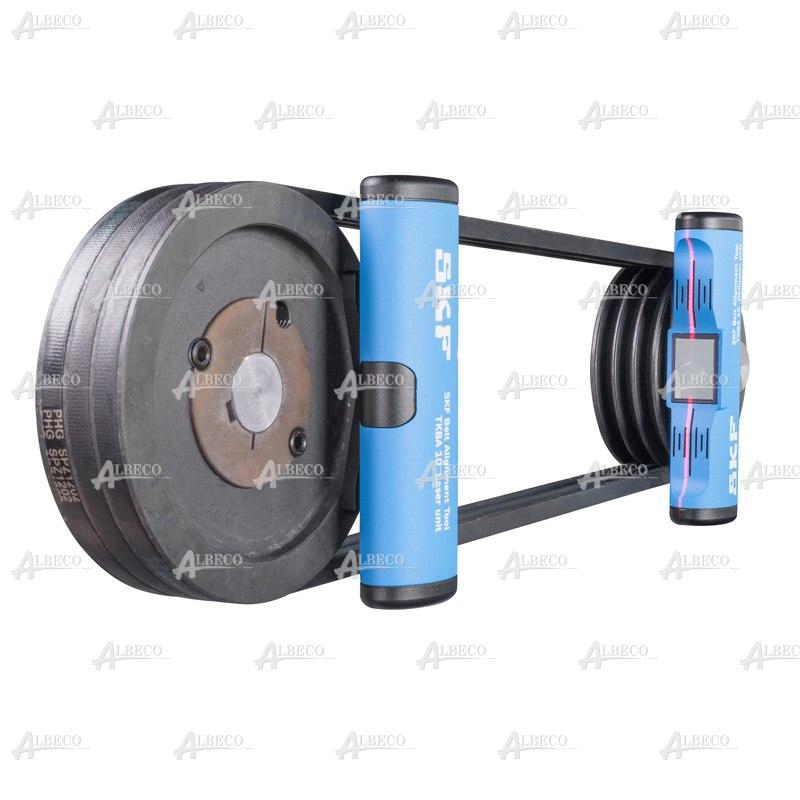

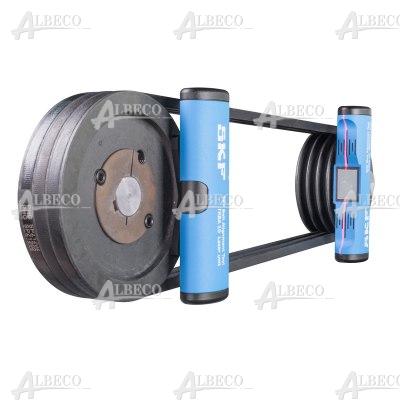

The SKF Belt Alignment Tool TKBA 10 allow pulleys and sprockets to be aligned on the side face. The unit magnetically attaches to the inside or outside face of almost any belt pulley or chain sprocket and has no small parts or targets that can get lost. A laser line is projected from the transmitter unit to the reflector unit mounted on the opposite pulley. A reference line on the reflector unit directly indicates the offset and vertical angle misalignment. The reflected laser line shown on the transmitter unit shows the horizontal angle misalignment of all three.

Powerful magnets for fast and easy attachment.
Facilitates simultaneous adjustment of tension and Alignment.
Can be used on almost all machines usin V belts, banded belts, ribbed belts and most other belts as well as chain sprockets.
Red laser for measurement distances up to 3 m (10 ft). Sturdy aluminium housins help ensure assembly stability and accuracy durin the Alignment process

Attributes

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	1.54 kg
material	aluminium
type	Pulley alignment tool
includes	1x TKBA 10 transmitter unit, 1x TKBA 10 receiver unit, 2x AAA batteries, 1x Printed instructions for use, 1x Calibration certificate
protection class IP	IP40
battery life	25 hours continuous operation.
