Pulley

HDB26-8M30 SIT

TL 26 8M 30 (1108) SIT PBH26-8M30 SIT
dimensions 0 x 64.84 x 38
Weight 0.48 kg
bo - belt width [mm] 30
country of origin China

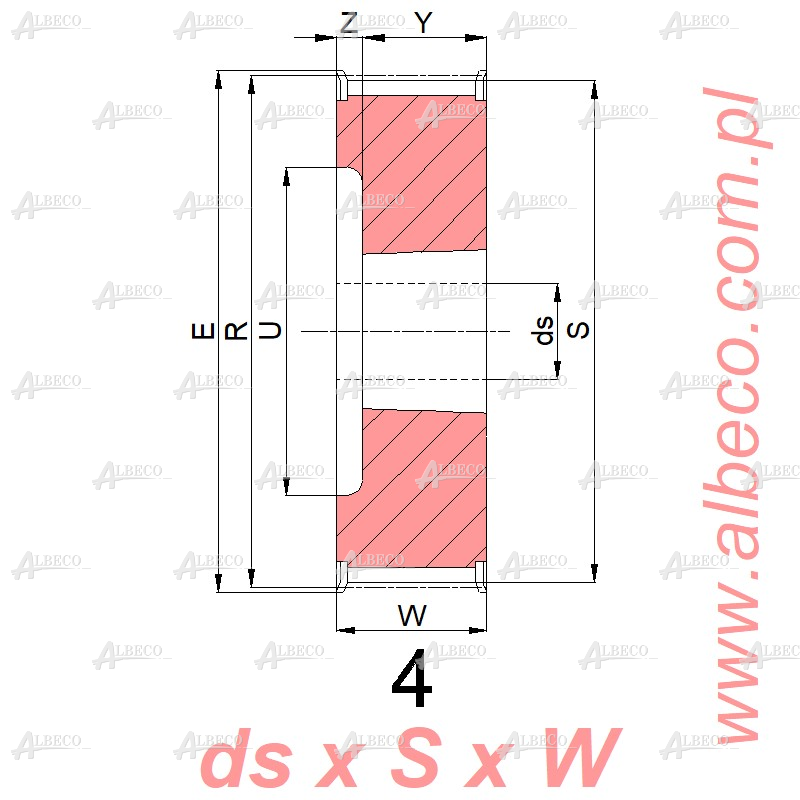

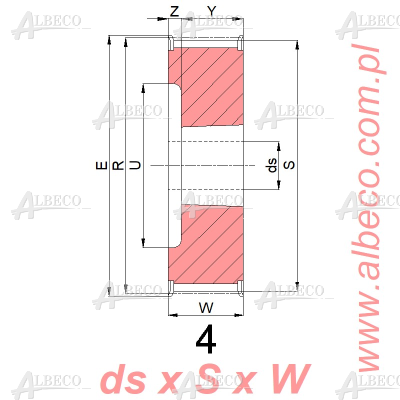

execution 4
E [mm] 70
feature no hub
feature taper bushing mounting
feature pulley with flanges
material carbon steel C45 / 1.0503 / AISI1045
number of teeth 26
profile 8M
R [mm] 66.21
Plewiska (6)

on stock
Attributes
manufacturer SIT
dimensions 0 x 64.84 x 38
Weight 0.48 kg
bo - belt width [mm] 30
feature no hub
feature taper bushing mounting
feature pulley with flanges
E [mm] 70
number of teeth 26
material carbon steel C45 / 1.0503 / AISI1045
S [mm] 64.84
type pulley
W [mm] 38
used with Taper Lock 1108
Y [mm] 22
Z - depth [mm] 16
execution 4
profile 8M
R [mm] 66.21
U [mm] 45
country of origin China
