TKSA 11 SKF

Alignment Tool

Weight 2.334 kg
application Horizontal shafts.
battery life Up to 18 hours.
country of origin Germany
includes TDTC 1/B - SKF Tool Case, size B, generic, no inlay, empty
includes TKSA 11-MBH - Magnetic bar holder
includes TKSA 11-RB - Reference bars set (100 mm, 150 mm, 200 mm)
includes TKSA 11-VBK - Standard bracket (1x) with 80 mm rods and standard chain 480 mm
protection class IP54
shaft diameter [mm] 20 to 160 mm, up to 320 mm with optional extension chains (not included)
type alignment tool
used with TKSA 11-EBK - Extendable brackets (2x) with 2x 120 mm and 2x 80 mm threaded rods (no chains)
Plewiska (13)

on stock

TKSA 11 SKF

Alignment Tool

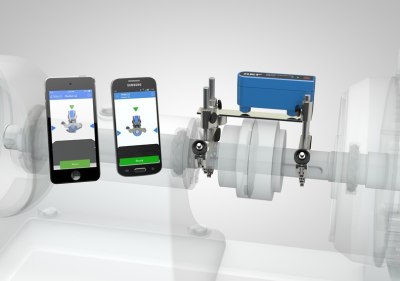

The SKF Shaft Alignment Tool TKSA 11 is an innovative shaft alignment tool that uses smartphones and tablets to intuitively guide the user through the shaft alignment process. With a focus on the core alignment tasks, the TKSA 11 is designed to be very easy-to-use. The small size make the instrument ideal for quick checks during inspection routes and compact installations. The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.
  • Live view for intuitive measurements and easy horizontal corrections
  • Fully functional demonstration mode in free TKSA 11 app Fast return on investment and very affordable Inductive proximity sensors are not affected by bright sunlight, increase the robustness of the instrument and reduce the influence of backlash
  • Automatic alignment reports can be customised with notes and pictures and can easily be exported as pdf
  • Also available as complete ready-to-use system with rugged, industrial display device and pre-installed apps TKSA 11D2.
manufacturer SKF
dimensions 0 x 0 x 0
Weight 2.334 kg
shaft diameter [mm] 20 to 160 mm, up to 320 mm with optional extension chains (not included)
type alignment tool
used with TKSA 11-EBK - Extendable brackets (2x) with 2x 120 mm and 2x 80 mm threaded rods (no chains)
used with TKSA 51-EXT50 - Offset bracket 50 mm with 2x 80 mm threaded rods
used with TKSA 51-EXTCH - Extension chains 2x 450 mm
used with TKSA 51-ROD120 - Threaded extension rods 4x 120 mm
used with TKSA 51-ROD80 - Threaded extension rods 4x 80 mm
used with TKSA 51-SPDBK - Spindle bracket and 2x 80 mm rods
used with TKSA 51-VBK - Standard bracket (1x) with 2x 80 mm threaded rod, 1x 480 mm chain, 4x magnets
application Horizontal shafts.
includes TDTC 1/B - SKF Tool Case, size B, generic, no inlay, empty
includes TKSA 11-MBH - Magnetic bar holder
includes TKSA 11-RB - Reference bars set (100 mm, 150 mm, 200 mm)
includes TKSA 11-VBK - Standard bracket (1x) with 80 mm rods and standard chain 480 mm
protection class IP54
battery life Up to 18 hours.
country of origin Germany
