You are here: Bearing housings and units Bearing units Cast iron housing units ESFD205 SNR

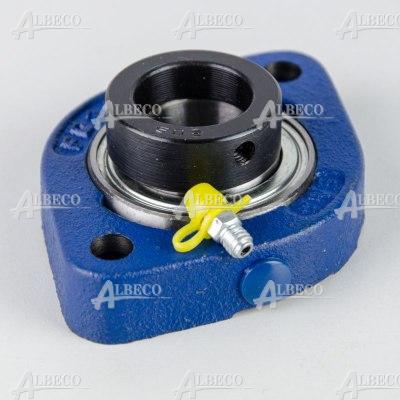

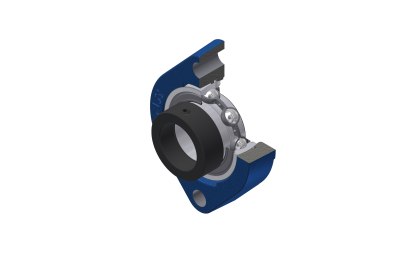

Cast iron bearing unit

ESFD205 SNR

Name: ESFD205 SNR
Rating: 4.7 (5 reviews)

dimensions	25 x 0 x 0
Weight	0.487 kg
A [mm]	17.5
cage	steel
clearence	C3 - greater than normal
country of origin	China
dynamic load rating [N]	14000
d [mm]	25
J [mm]	76.2
L2 [mm]	71
L [mm]	97
sealing	double-sided lip seal covered with a plate
static load rating [N]	7880

Plewiska (215)

on stock

Katowice (7)

on stock

Olsztyn (10)

on stock

Attributes Substitutes (4)

ESFD205 SNR

Cast iron bearing unit

Attributes

manufacturer	SNR
dimensions	25 x 0 x 0
Weight	0.487 kg
A [mm]	17.5
d [mm]	25
L [mm]	97
L2 [mm]	71
clearence	C3 - greater than normal
type	Cast iron bearing unit
sealing	double-sided lip seal covered with a plate
J [mm]	76.2
dynamic load rating [N]	14000
static load rating [N]	7880
cage	steel
country of origin	China
