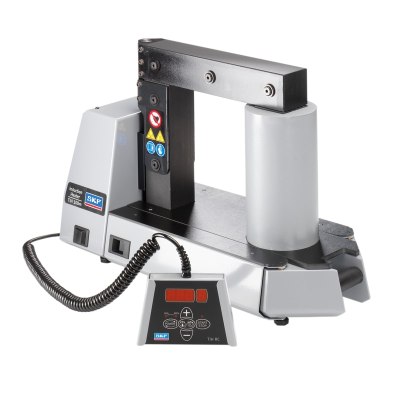

Induction heater

TIH 100M/MV SKF

dimensions 570 x 230 x 350
Weight 42.275 kg
country of origin Netherlands
includes pilot TIH RC
includes Magnetic probe TIH P20 type K
includes TIH 100-Y4 yoke 28 x 28 x 296 mm (1.1 x 1.1 x 11.6 in)
includes grease LGAF 3E/0.035
includes TIH 100-Y2 yoke 14 x 14 x 296 mm (0.5 x 0.5 x 11.6 in)
includes TIH 100-Y8 yoke 56 x 56 x 296 mm (2.2 x 2.2 x 11.6 in)
max. bearing weight [kg] 120
operating area [mm] 155 x 205
power [kVA] 4,0÷4,6
type induction heater
Plewiska (1)

on stock
baner_SKF_Uklad_Centralnego_Sterowania baner_SKF_Uklad_Centralnego_Sterowania

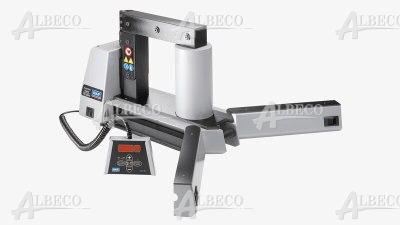

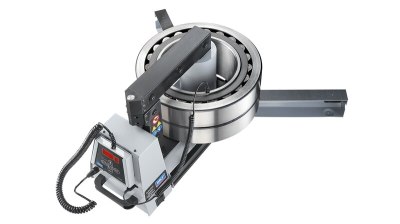

The SKF TIH 100M is a medium sized induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley TIH T1. The heater is supplied with a swivel yoke and two optional yokes for smaller bearings. The TIH 100M can heat small bearings with a bore diameter of just 20 mm and larger bearings with a maximum weight of 120 kg.
  • Supplied with a swivel yoke and two smaller yokes, located in an interated storae compartment.
  • Easy and safe to use with automatic temperature control or time controlled heating.
  • Automatic demanetization reduces risk of bearing contamination.
  • Suitable for non-bearing applications for workpieces weihin up to 60 kg.
  • Automatic temperature hold function to keep the bearing hot after completion of the heatin cycle.
Attributes
manufacturer SKF
dimensions 570 x 230 x 350
Weight 42.275 kg
max. bearing weight [kg] 120
type induction heater
used with TIH 100-Y6 yoke 40 x 40 x 296 mm (1.6 x 1.6 x 11.6 in)
used with TIH 100-Y3 yoke 20 x 20 x 296 mm (0.8 x 0.8 x 11.6 in)
includes pilot TIH RC
includes Magnetic probe TIH P20 type K
includes TIH 100-Y4 yoke 28 x 28 x 296 mm (1.1 x 1.1 x 11.6 in)
includes grease LGAF 3E/0.035
includes TIH 100-Y2 yoke 14 x 14 x 296 mm (0.5 x 0.5 x 11.6 in)
includes TIH 100-Y8 yoke 56 x 56 x 296 mm (2.2 x 2.2 x 11.6 in)
power [kVA] 4,0÷4,6
operating area [mm] 155 x 205
country of origin Netherlands
