You are here: Tools Mechanical tools Bearing separators TMBS 50E SKF
MaPro

Bearing separator

TMBS 50E SKF

Weight 1.96 kg
arm length [mm] 110
capacity [t] 3
country of origin Taiwan

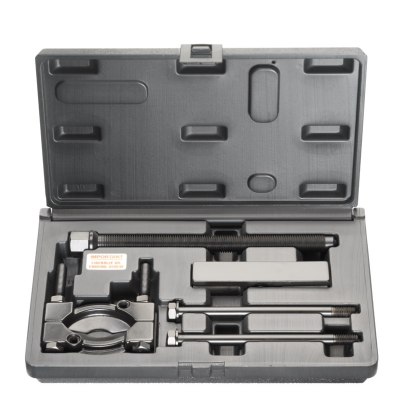

includes 1x separator set, 1x mechanical spindle, 1x beam, 2x main rods
shaft diameter [mm] 7÷50
type bearing separator
Plewiska (6)

on stock
Olsztyn (1)

on stock
The SKF TMBS 50E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a lon reach. The puller is operated mechanically and especially suitable for small shaft diameters. A special separator desin is used that can be easily inserted between the bearing and the shoulder on the shaft.
  • Easily separator placement between bearing and shoulder on the shaft
  • Spring-loaded centre point of spindle allows easy puller centring and minimises the risk of shaft damage
  • Dismounting force is generated by mechanical spindle
  • Firm grip behind the bearing's inner ring reduces the force required to dismount the bearing
Attributes
manufacturer SKF
dimensions 0 x 0 x 0
Weight 1.96 kg
capacity [t] 3
shaft diameter [mm] 7÷50
type bearing separator
includes 1x separator set, 1x mechanical spindle, 1x beam, 2x main rods
arm length [mm] 110
country of origin Taiwan
