Name: TMMS 260 SKF
Rating: 4.5 (5 reviews)

TMMS 260 SKF

dimensions

0 x 0 x 42

Weight

24.99 kg

compatible with

TMHP 15, TMHP 50

diameter range [mm]

70÷114

shaft diameter [mm]

90÷260

type

bearing separator

Details Attributes Substitutes (1) Works with

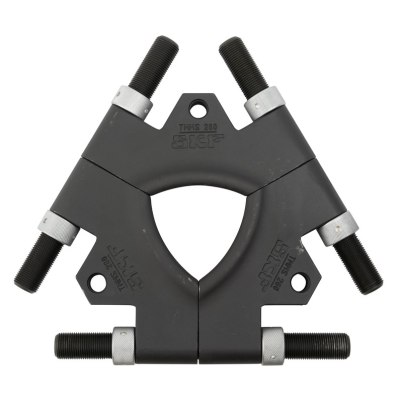

TMMS 260 SKF

Bearing separator

The tri-section pulling plate TMMS 260 is especially designed for use in combination with three-armed bearing pullers. The plate grips behind the inner ring of the bearing and prevents the pulling forces from being transmitted through the bearing, minimising the risk of bearing damage.

Efficient bearing dismounting with unique design to direct dismounting forces directly to the bearing inner ring
No bearing damage from dismounting forces that go through the bearing outer ring and rolling elements
Even force distribution revents bearing bearing locking or tilting during dismounting
Wig shape allows the plates to be easily inserted between bearing and the shoulder on the shaft
Suitable for use in combination with any three-armed bearing puller

Attributes

manufacturer	SKF
dimensions	0 x 0 x 42
Weight	24.99 kg
shaft diameter [mm]	90÷260
type	bearing separator
diameter range [mm]	70÷114
compatible with	TMHP 15, TMHP 50
