Name: TIH 220M/LV SKF
Rating: 5 (9 reviews)

TIH 220M/LV SKF

dimensions

750 x 290 x 440

Weight

120 kg

country of origin

includes

TIH 220-Y6 yoke 40 x 40 x 430 mm

includes

TIH P20 Magnetic probe type K

includes

TIH 220-Y10 yoke 70 x 70 x 430 mm

includes

pilot TIH RC

max. bearing weight [kg]

300

operating area [mm]

250 x 255

type

induction heater

used with

TIH 220-YS support yoke set of 2, 70 x 70 x 150 mm

used with

TIH 220-Y4 yoke 28 x 28 x 430 mm

Details Attributes

TIH 220M/LV SKF

Induction heater

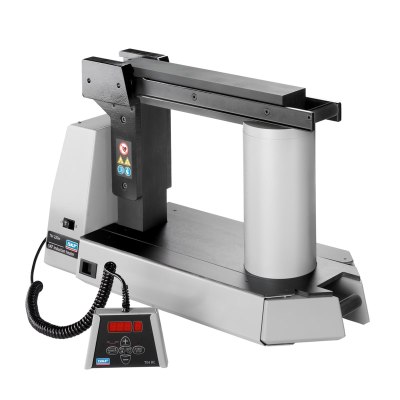

The SKF TIH 220M is a large induction heater and is designed for the hot mounting of bearings. This versatile heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley TIH T1. The heater has a convenient sliding yoke and is supplied with an additional smaller yoke. The TIH 220M can heat bearings with a minimum bore diameter of 60 mm and larger bearings with a maximum weight of 300 kg.

Supplied with standard sliding yoke and one smaller yoke located in an integrated storage compartment.
Easy and safe to use with automatic temperature control or time controlled heating.
Automatic demagnetization reduces risk of bearing contamination.
Suitable for non-bearing applications for workpieces weighing up to 150 kg.
Automatic temperature hold function to keep the bearing hot after completion of the heating cycle.

manufacturer	SKF
dimensions	750 x 290 x 440
Weight	120 kg
max. bearing weight [kg]	300
type	induction heater
used with	TIH 220-YS support yoke set of 2, 70 x 70 x 150 mm
used with	TIH 220-Y4 yoke 28 x 28 x 430 mm
includes	TIH 220-Y6 yoke 40 x 40 x 430 mm
includes	TIH P20 Magnetic probe type K
includes	TIH 220-Y10 yoke 70 x 70 x 430 mm
includes	pilot TIH RC
operating area [mm]	250 x 255
country of origin
