Name: TLSD 125/HQ2 SKF
Rating: 5 (11 reviews)

TLSD 125/HQ2 SKF

Weight

0.6 kg

capacity [ml]

125

grease

LGHQ 2

max. feed line length [m]

protection class IP

IP65

thread

G 1/4

type

Electro-mechanical single point lubricator

working principle

Electro mechanical

Details Attributes Works with

TLSD 125/HQ2 SKF

Electro-mechanical single point lubricator

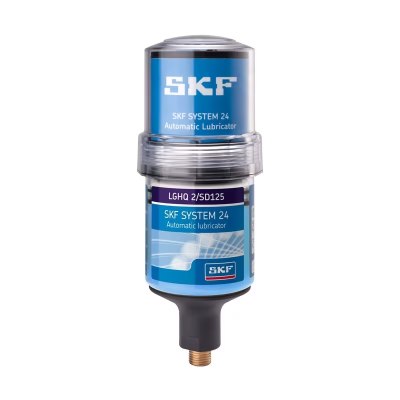

The SKF SYSTEM 24 TLSD 125/HQ2 is an electro-mechanical single point automatic lubricator. It is filled with 125 ml of SKF LGHQ 2 grease for wide temperature range recommended for electric motors, fans and pumps. Key benefits of using an automatic lubricator are improved employee safety, increased machine reliability and optimized maintenance operations.

Flexible dispense rate from 1 to 12 months
Maximum discharge pressure of 5 bar over the whole dispensing period
Lubricator's status visible with red/yellow/green LED
Compact size permits installation in restrictive areas
Supplied with support flange for enhanced sturdiness
Suitable for both direct and remote installation

Attributes

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	0.6 kg
thread	G 1/4
capacity [ml]	125
grease	LGHQ 2
type	Electro-mechanical single point lubricator
working principle	Electro mechanical
protection class IP	IP65
max. feed line length [m]	3
