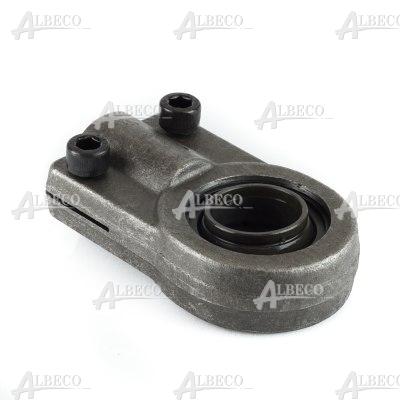

Name: FPR 32 CE (TAPR 32 CE) FLURO
Rating: 5 (12 reviews)

FPR 32 CE (TAPR 32 CE) FLURO

dimensions

32 x 0 x 32

Weight

1.146 kg

A - rod end outer diameter [mm]

additional description

Rod Ends Cetop, recommendation RP 58H for standard Hydraulic Cylinders, fastened by hexagon socket head cap screws to DIN 912-8.8. Spherical Plain Bearing, regreasable, fixed with snap rings Mounting dimensions to DIN 24333-24336 and ISO 6020/1, ISO 6022

C - outer ring width [mm]

country of origin

China

dynamic load rating [N]

67000

d [mm]

F - height to the axis [mm]

friction pair

steel/steel

GL - thread length [mm]

housing material

carbon steel C45 / 1.0503 / AISI1045

inner ring width [mm]

Attributes Substitutes (1)

FPR 32 CE (TAPR 32 CE) FLURO

Rod end

Attributes

manufacturer	FLURO
dimensions	32 x 0 x 32
Weight	1.146 kg
A - rod end outer diameter [mm]	71
inner ring width [mm]	32
C - outer ring width [mm]	28
d [mm]	32
F - height to the axis [mm]	80
GL - thread length [mm]	37
thread	M27x2
L - rod head height [mm]	118
screw tightening torque [Nm]	49
norm	DIN 24338 / ISO 6982
friction pair	steel/steel
type	Rod end
J [mm]	38
K [mm]	66
additional description	Rod Ends Cetop, recommendation RP 58H for standard Hydraulic Cylinders, fastened by hexagon socket head cap screws to DIN 912-8.8. Spherical Plain Bearing, regreasable, fixed with snap rings Mounting dimensions to DIN 24333-24336 and ISO 6020/1, ISO 6022
dynamic load rating [N]	67000
static load rating [N]	114000
max. tilt angle [°]	4
country of origin	China
thread 2	internal thread, right
housing material	carbon steel C45 / 1.0503 / AISI1045
M1	22

Technical materials

Product's substitutes

DGIHN-K 32 LO DURBAL

Rod end

32 x 0 x 32

in stock

Plewiska: 20 pcs
