Name: BRF 08-00-501 DURBAL
Rating: 4.9 (12 reviews)

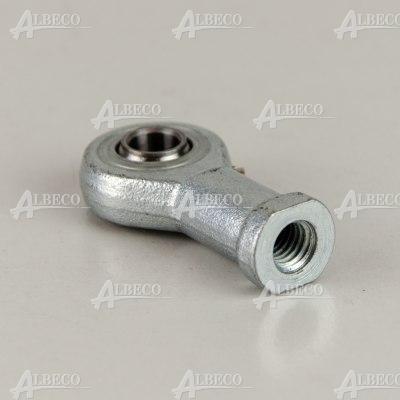

BRF 08-00-501 DURBAL

dimensions

8 x 0 x 0

Weight

0.045 kg

A - rod end outer diameter [mm]

C - outer ring width [mm]

cage

none

clearence

10÷30 µm

country of origin

Germany

dynamic load rating [N]

4000

d [mm]

F - height to the axis [mm]

friction pair

self-aligning ball bearing

GL - thread length [mm]

inner ring width [mm]

Attributes Substitutes (3)

BRF 08-00-501 DURBAL

Rod end with integral self-aligning ball bearing

Attributes

manufacturer	DURBAL
dimensions	8 x 0 x 0
Weight	0.045 kg
A - rod end outer diameter [mm]	24
inner ring width [mm]	12
C - outer ring width [mm]	9
d [mm]	8
F - height to the axis [mm]	36
GL - thread length [mm]	16
thread	M8
L - rod head height [mm]	48
clearence	10÷30 µm
norm	DIN ISO 12240-4 & DIN ISO 8139 serie K
max. velocity [rpm]	1300
friction pair	self-aligning ball bearing
type	Rod end with integral self-aligning ball bearing
sealing	double-sided non-contact shields
dynamic load rating [N]	4000
static load rating [N]	1000
cage	none
product line	Premium line
max. tilt angle [°]	8.5
country of origin	Germany
thread 2	internal thread, right
