Name: GIB 8 FLURO
Rating: 4.6 (13 reviews)

GIB 8 FLURO

dimensions

8 x 0 x 12

Weight

0.044 kg

A - rod end outer diameter [mm]

additional description

Rod end series K with male thread and integrated self-aligning ball-bearing for use at high speeds. Rod ends series K (DIN ISO 12240-4) with self-aligning ball-bearing.

C - outer ring width [mm]

clearence

10÷30 µm

country of origin

Germany

dimensional series

dynamic load rating [N]

4800

d [mm]

F - height to the axis [mm]

friction pair

steel/steel

GL - thread length [mm]

Attributes Substitutes (3)

GIB 8 FLURO

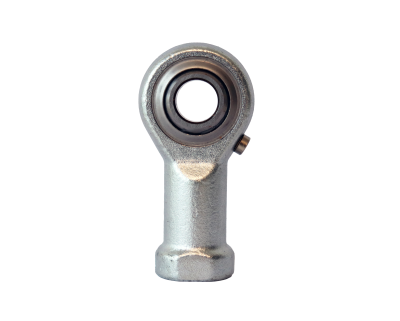

Rod end with integral self-aligning ball bearing, zinc plated

Attributes

manufacturer	FLURO
dimensions	8 x 0 x 12
Weight	0.044 kg
A - rod end outer diameter [mm]	24
inner ring width [mm]	12
C - outer ring width [mm]	9
d [mm]	8
F - height to the axis [mm]	36
GL - thread length [mm]	48
thread	M8
L - rod head height [mm]	10.1
clearence	10÷30 µm
sealing material	stainless steel
norm	DIN ISO 12240-4
friction pair	steel/steel
SW [mm]	13
type	Rod end with integral self-aligning ball bearing
J [mm]	12.5
K [mm]	16
additional description	Rod end series K with male thread and integrated self-aligning ball-bearing for use at high speeds. Rod ends series K (DIN ISO 12240-4) with self-aligning ball-bearing.
product feature	zinc plated
dynamic load rating [N]	4800
static load rating [N]	1000
max. tilt angle [°]	8.5
country of origin	Germany
limiting speed [rpm]	1560
thread 2	internal thread, right
housing material	bearing steel 100Cr6 / 1.3505 / AISI52100 / ŁH13 / SUJ2
inner ring material	bearing steel 100Cr6 / 1.3505 / AISI52100 / ŁH13 / SUJ2
dimensional series	K
