You are here: Bearings Spherical roller bearings Simple spherical roller bearings 21304-E1-XL-TVPB FAG

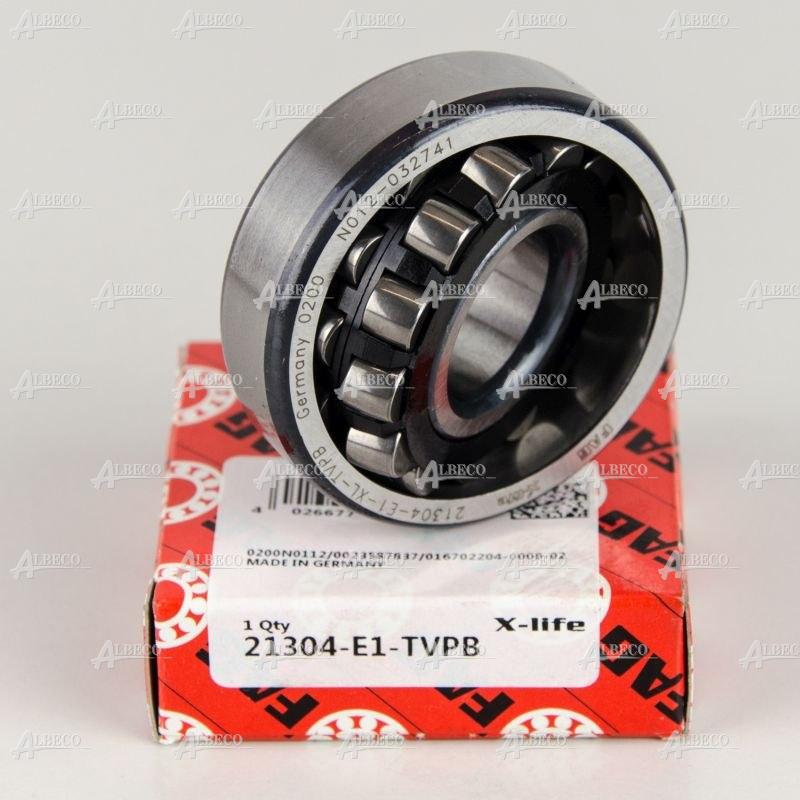

Spherical roller bearing

21304-E1-XL-TVPB FAG

dimensions	20 x 52 x 15
Weight	0.163 kg
cage	polyamide
clearence	CN - normal clearance
country of origin	Germany
dynamic load rating [N]	41000
limiting speed [rpm]	16000
operating temperature	-30÷120°C
reference speed [rpm]	9700
reinforced execution	yes
static load rating [N]	33000
type	Spherical roller bearing

Plewiska (30)

on stock

Olsztyn (4)

on stock

Log in to see the price

FAG

Attributes Substitutes (5)

21304-E1-XL-TVPB FAG

Spherical roller bearing

Log in to see the price

Attributes

manufacturer	FAG
dimensions	20 x 52 x 15
Weight	0.163 kg
clearence	CN - normal clearance
operating temperature	-30÷120°C
type	Spherical roller bearing
reinforced execution	yes
dynamic load rating [N]	41000
static load rating [N]	33000
cage	polyamide
country of origin	Germany
limiting speed [rpm]	16000
reference speed [rpm]	9700

Technical materials

Medias

Product's substitutes

21304 FAG

21304 FAG

Spherical roller bearing

20 x 52 x 15

Log in to ask for price and availability

21304 CAW33 FŁT

21304 CAW33 FŁT

Spherical roller bearing

20 x 52 x 15

Log in to ask for price and availability

21304.CD.E4 NSK

21304.CD.E4 NSK

Spherical roller bearing

20 x 52 x 15

Log in to ask for price and availability

21304.CD.E4.S11 NSK

21304.CD.E4.S11 NSK

Spherical roller bearing

20 x 52 x 15

Log in to ask for price and availability

21304-CW33 CRAFT

21304-CW33 CRAFT

Spherical roller bearing

20 x 52 x 15
