You are here: Bearing housings and units Bearing units Cast iron housing units PME50-XL-N INA

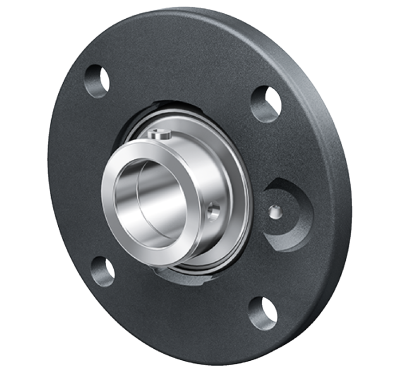

Cast iron bearing unit

PME50-XL-N INA

Name: PME50-XL-N INA
Rating: 5 (7 reviews)

700.054.215 Hesston 700.054.215 Hesston

dimensions	50 x 0 x 0
Weight	2.18 kg
A1 [mm]	13
A [mm]	25
cage	polyamide
clearence	C3 - greater than normal
country of origin	Vietnam
D2 [mm]	140
Dynamic load rating [N]	35000
d [mm]	50
D [mm]	165
groove in housing for fixing protective caps	yes
groove on outer ring	yes

Plewiska (12)

on stock

Katowice (2)

on stock

Attributes Substitutes (3)

PME50-XL-N INA

Cast iron bearing unit

manufacturer	INA
dimensions	50 x 0 x 0
Weight	2.18 kg
A [mm]	25
d [mm]	50
D [mm]	165
groove in housing for fixing protective caps	yes
clearence	C3 - greater than normal
groove on outer ring	yes
T [mm]	43.8
type	cast iron bearing unit
sealing	double-sided lip seal covered with a plate
A1 [mm]	13
D2 [mm]	140
Dynamic load rating [N]	35000
static load rating [N]	23200
cage	polyamide
country of origin	Vietnam
