QS-1/4-8 FESTO

153005 FESTO

dimensions

8 x 0 x 0

Weight

0.014 kg

country of origin

Japan

material

POM

type

Straight connector

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com

Details Attributes Substitutes (1)

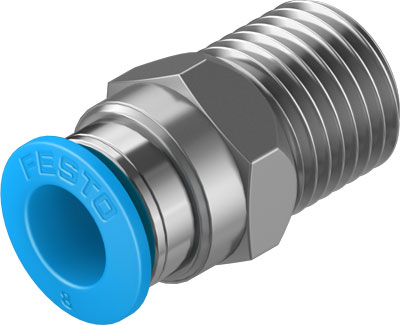

QS-1/4-8 FESTO

Straight connector

Data sheet:

Name: QS-1/4-8 FESTO
Rating: 4.5 (13 reviews)

Feature	Value
Size	Standard
Nominal size	7 mm
Type of seal on screw-in stud	coating
Assembly position	Any
Design structure	Push/pull principle
Operating pressure complete temperature range	-0.95 ... 6 bar
Temperature dependent operating pressure	-0.95 ... 14 bar
Maritime classification	see certificate
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	1 - Low corrosion stress
Ambient temperature	-10 ... 80 °C
Product weight	14 g
Pneumatic connection, port 1	Male thread R1/4
Pneumatic connection, port 2	For tubing outside diameter 8 mm
Colour of release ring	blue
Materials note	Conforms to RoHS
Material housing	Brass Nickel plated
Material release ring	POM
Material of tubing seal	NBR
Material of tube retaining claw	High alloy steel, non-corrosive

Attributes

manufacturer	FESTO
dimensions	8 x 0 x 0
Weight	0.014 kg
material	POM
type	Straight connector
country of origin	Japan
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com
