Reducer
LR-1/2-D-MIDI FESTO
159581 FESTO
| Weight | 1.007 kg |
| type | Reducer |
| working medium | Gazy obojętne, sprężone powietrze wg ISO8573-1:2010 [7:4:4] |
| working pressure [bar] | 0÷16 |
| zakres regulacji ciśnienia [bar] | 0,5÷12 |

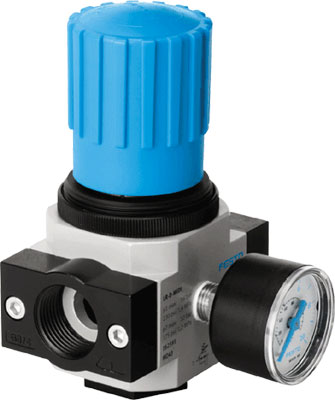

LR-1/2-D-MIDI FESTO
Reducer
Data sheet:
| Feature | Value |
|---|---|
| Size | Midi |
| Series | D |
| Actuator lock | Rotary knob with lock |
| Assembly position | Any |
| Design structure | directly-controlled diaphragm regulator |
| Controller function | Output pressure constant with initial pressure compensation with secondary exhaust |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0 ... 16 bar |
| Pressure regulation range | 0.5 ... 7 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 4,000 l/min |
| Maritime classification | see certificate |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Air purity class at output | Compressed air in accordance with ISO8573-1:2010 [7:4:4] Inert gases |
| Medium temperature | -10 ... 60 °C |
| Ambient temperature | -10 ... 60 °C |
| Product weight | 720 g |
| Mounting type | Front panel installation Line installation with accessories |
| Pneumatic connection, port 1 | G1/2 |
| Pneumatic connection, port 2 | G1/2 |
| Materials note | Conforms to RoHS |
| Material of connecting plate | Zinc die-casting |
| Material seals | NBR |
| Material housing | Zinc die-casting |
Attributes
| manufacturer | FESTO |
| dimensions | 0 x 0 x 0 |
| Weight | 1.007 kg |
| working pressure [bar] | 0÷16 |
| type | Reducer |
| zakres regulacji ciśnienia [bar] | 0,5÷12 |
| working medium | Gazy obojętne, sprężone powietrze wg ISO8573-1:2010 [7:4:4] |
