You are here: Power transmission Couplings Taper-lock sleeves TAPER LOCK 1615-12 SIT

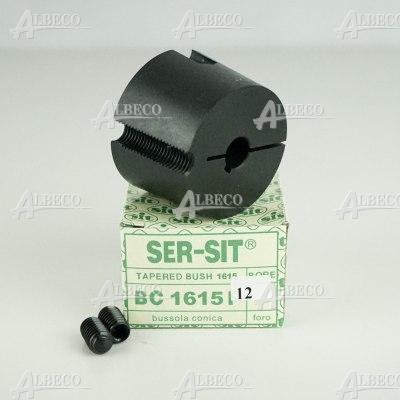

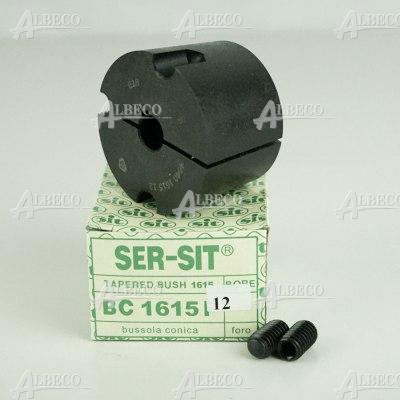

Name: TAPER LOCK 1615-12 SIT
Rating: 4.8 (12 reviews)

BC1615F12 SIT

dimensions	12 x 57 x 38.1
Weight	0.603 kg
b [mm]	4
country of origin	Italy
feature	taper lock bush for mounting pulleys
feature	4 holes
material	grey cast iron
mounting holes number	2
screw tightening torque [Nm]	19.6
t2 [mm]	1.8
transmissible torque moment [Nm]	486
type	Taper-lock bush

Plewiska (8)

on stock

Attributes

TAPER LOCK 1615-12 SIT

Taper-lock bush

Attributes

manufacturer	SIT
dimensions	12 x 57 x 38.1
Weight	0.603 kg
b [mm]	4
feature	taper lock bush for mounting pulleys
feature	4 holes
mounting holes number	2
material	grey cast iron
screw tightening torque [Nm]	19.6
transmissible torque moment [Nm]	486
t2 [mm]	1.8
type	Taper-lock bush
country of origin	Italy
