You are here: Power transmission Couplings Taper-lock sleeves TAPER LOCK 2012-24 SIT

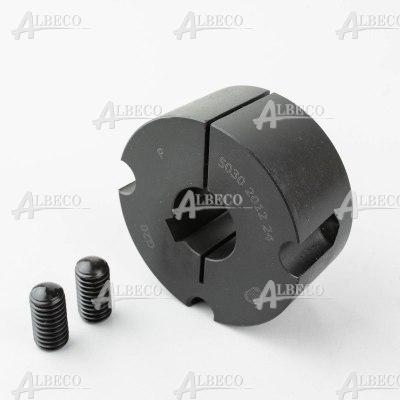

Taper-lock bush

TAPER LOCK 2012-24 SIT

Name: TAPER LOCK 2012-24 SIT
Rating: 4.6 (2 reviews)

BC2012F24 SIT

dimensions	24 x 70 x 31.8
Weight	0.71 kg
b [mm]	8
country of origin	China
feature	taper lock bush for mounting pulleys
feature	4 holes
material	grey cast iron
mounting holes number	2
screw tightening torque [Nm]	30.4
t2 [mm]	3.3
transmissible axial load [kN]	11500
transmissible torque moment [Nm]	808
type	taper-lock bush

Plewiska (5)

on stock

Attributes Substitutes (2)

TAPER LOCK 2012-24 SIT

Taper-lock bush

Attributes

manufacturer	SIT
dimensions	24 x 70 x 31.8
Weight	0.71 kg
b [mm]	8
feature	taper lock bush for mounting pulleys
feature	4 holes
mounting holes number	2
material	grey cast iron
screw tightening torque [Nm]	30.4
transmissible torque moment [Nm]	808
transmissible axial load [kN]	11500
t2 [mm]	3.3
type	taper-lock bush
country of origin	China
