You are here: Power transmission Couplings Taper-lock sleeves TAPER LOCK 3030-60 SIT

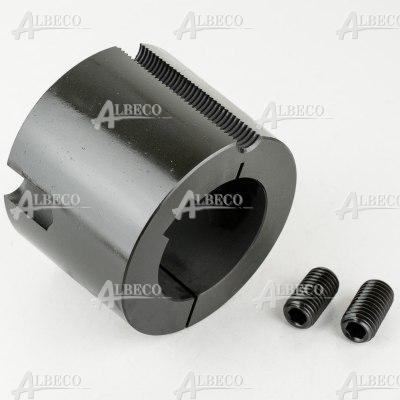

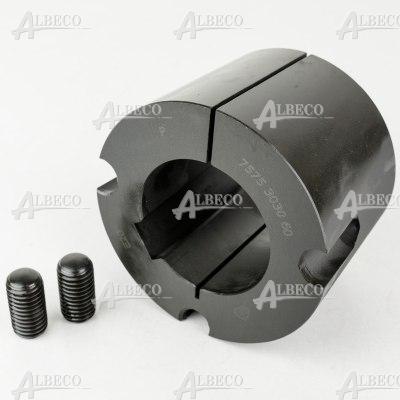

Taper-lock bush

TAPER LOCK 3030-60 SIT

Name: TAPER LOCK 3030-60 SIT
Rating: 5 (11 reviews)

BC3030F60 SIT

dimensions	60 x 108 x 76.2
Weight	2.94 kg
b [mm]	18
country of origin	China
feature	taper lock bush for mounting pulleys
feature	4 holes
material	grey cast iron
mounting holes number	2
screw tightening torque [Nm]	90
t2 [mm]	4.4
transmissible axial load [kN]	31500
transmissible torque moment [Nm]	2710
type	taper-lock bush

Plewiska (20)

on stock

Attributes Substitutes (1)

TAPER LOCK 3030-60 SIT

Taper-lock bush

manufacturer	SIT
dimensions	60 x 108 x 76.2
Weight	2.94 kg
b [mm]	18
feature	taper lock bush for mounting pulleys
feature	4 holes
mounting holes number	2
material	grey cast iron
screw tightening torque [Nm]	90
transmissible torque moment [Nm]	2710
transmissible axial load [kN]	31500
t2 [mm]	4.4
type	taper-lock bush
country of origin	China
