Name: EGR20T /0297H, 27-30 HIWIN
Rating: 4.7 (2 reviews)

EGR20T /0297H, 27-30 HIWIN

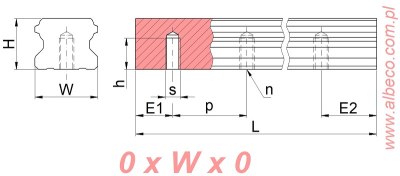

dimensions

0 x 20 x 0

Weight

0.639 kg

country of origin

Taiwan

h [mm]

H [mm]

15.5

material

induction hardened steel

number of raceways

operating temp.

-10÷80°C

p - pitch [mm]

60.0

precision

high accuracy

rail size

screw (min. lenght)

ISO4762, M6x10-12.9

Attributes Variants (7) Works with

EGR20T /0297H, 27-30 HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

Attributes

manufacturer	HIWIN
dimensions	0 x 20 x 0
Weight	0.639 kg
h [mm]	9
H [mm]	15.5
number of raceways	4
material	induction hardened steel
p - pitch [mm]	60.0
rail size	20
s	M6
screw (min. lenght)	ISO4762, M6x10-12.9
operating temp.	-10÷80°C
surface hardness	58+4HRC
type	rail with threaded holes
W [mm]	20
used with	EGH…CA, EGH…SA, QHE…CA, QHE…SA, EGW…SC, EGW…CC, QEW…CC, QEW…SC
precision	high accuracy
country of origin	Taiwan

Technical materials

catalog

Variants

EGR20T /0160H, 20-20 HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

0 x 20 x 0

in stock

Plewiska: 2 pcs

EGR20T /0467H, 20-27 HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

0 x 20 x 0

in stock

Plewiska: 1 pcs

EGR20T /0705H, 38-7 HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

0 x 20 x 0

in stock

Plewiska: 1 pcs

EGR20T /0792H, 30-42 HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

0 x 20 x 0

in stock

Plewiska: 1 pcs

EGR20T /1022H, 20-42 HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

0 x 20 x 0

in stock

Plewiska: 1 pcs

EGR20T /1367H, 20-27 HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

0 x 20 x 0

in stock

Plewiska: 1 pcs

EGR20T /4000H HIWIN

Rail with threaded holes (operating temp.: -10÷80°C)

0 x 20 x 0

in stock

Plewiska: 5 pcs
