You are here: Pneumatics and hydraulics Pneumatic actuators DSNU-40-50-PPV-A FESTO

Pneumatic cylinder (norm: ISO 6432)

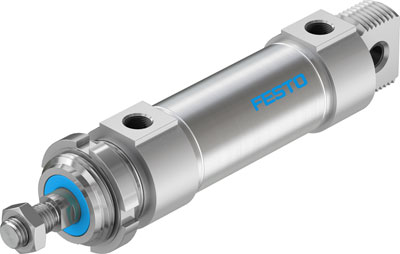

DSNU-40-50-PPV-A FESTO

196032 FESTO 196032 FESTO
dimensions 40 x 0 x 50
Weight 0.75 kg
country of origin Germany
norm ISO 6432
piston diameter 40 mm
stroke [mm] 50
thread G 1/4
thread M12x1,25
type pneumatic cylinder
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
working pressure [bar] 1÷10
Plewiska (39)

on stock

DSNU-40-50-PPV-A FESTO

Pneumatic cylinder (norm: ISO 6432)

Data sheet:




Feature Value
Stroke 50 mm
Piston diameter 40 mm
Piston rod thread M12x1,25
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Design structure Piston
Piston rod
Cylinder barrel
Position detection For proximity sensor
Operating pressure MPa 0.1 ... 1 MPa
Operating pressure 1 ... 10 bar
Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 °C
Cushioning length 18 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting 633.3 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance 752.9 N
Moving mass 310 g
Product weight 781 g
Mounting type with accessories
Pneumatic connection G1/4
Materials note Conforms to RoHS
Material cover Wrought Aluminium alloy
Material seals NBR
TPE-U(PU)
Material piston rod High alloy steel
Material cylinder barrel High alloy steel, non-corrosive
manufacturer FESTO
dimensions 40 x 0 x 50
Weight 0.75 kg
working pressure [bar] 1÷10
thread G 1/4
thread M12x1,25
norm ISO 6432
stroke [mm] 50
piston diameter 40 mm
type pneumatic cylinder
country of origin Germany
working medium Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
