Name: TMMS 380 SKF
Rating: 4.9 (9 reviews)

TMMS 380 SKF

dimensions

0 x 0 x 58

Weight

53.66 kg

compatible with

TMHP 30

country of origin

Taiwan

diameter range [mm]

81÷142

shaft diameter [mm]

140÷380

type

Bearing separator

Details Attributes Substitutes (1) Works with

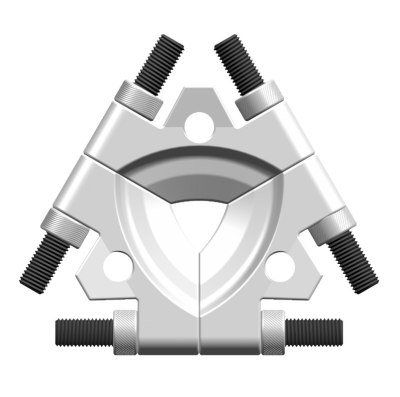

TMMS 380 SKF

Bearing separator

The tri-section pulling plate TMMS 380 is especially designed for use in combination with three-armed bearing pullers. The plate grips behind the inner ring of the bearing and prevents the pulling forces from being transmitted through the bearing, minimising the risk of bearing damage.

Efficient bearing dismounting with unique design to direct dismounting forces directly to the bearing inner ring
No bearing damage from dismounting forces that go through the bearing outer ring and rolling elements
Even force distribution revents bearing bearing locking or tilting during dismounting
Wig shape allows the plates to be easily inserted between bearing and the shoulder on the shaft
Suitable for use in combination with any three-armed bearing puller

Attributes

manufacturer	SKF
dimensions	0 x 0 x 58
Weight	53.66 kg
shaft diameter [mm]	140÷380
type	Bearing separator
diameter range [mm]	81÷142
compatible with	TMHP 30
country of origin	Taiwan
