You are here: Telescopic slides Telescopic slides DP9301-0030U-E ACCURIDE

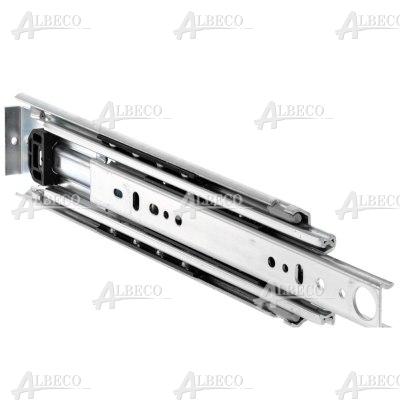

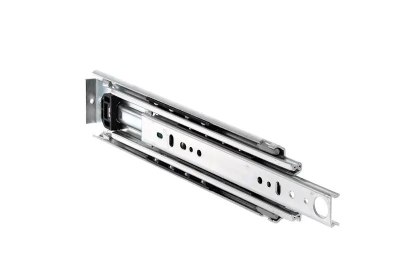

DP9301-0030U-E

Telescopic slide, anti-corrosion coating, extension 100% (operating temp.: -20÷70°C, load/pair: 258kg)

DP9301-0030U-E ACCURIDE

dimensions 76.2 x 19.1 x 762
Weight 3.715 kg
additional description Load rating 258kg if used for 10000 cycles with 610 mm wide drawer
additional description Flat mount load rating 51kg if used for 10000 cycles with 610 mm wide drawer
country of origin
extension length [mm] 762
flat mount yes
front disconnect no
grease filled with food grease
load/pair [kg] 258
material steel with anti-corrosion coating
mounting M5 countersunk screw (DIN 965)
mounting M6 countersunk screw (DIN 965)
Log in to see the price
Details Attributes Substitutes (1) Works with

DP9301-0030U-E ACCURIDE

Telescopic slide, anti-corrosion coating, extension 100% (operating temp.: -20÷70°C, load/pair: 258kg)

Corrosion Resistant Heavy Duty Slide 762mm DP9301-0030U-E

  • Corrosion resistant
  • Slides sold singly
  • Flat mounting reduces load rating by 80%
  • Bright zinc finish with high corrosion resistance - 500 h salt spray test
  • Load ratings vary depending upon application. Refer to ‘9301-E/9308-E4 Load ratings’ section
manufacturer ACCURIDE
dimensions 76.2 x 19.1 x 762
Weight 3.715 kg
slide length [mm] 762
extension length [mm] 762
material steel with anti-corrosion coating
mounting M5 countersunk screw (DIN 965)
mounting M6 countersunk screw (DIN 965)
mounting Required side space 0.2mm to 0.5mm
flat mount yes
load/pair [kg] 258
grease filled with food grease
operating temp. -20÷70°C
type telescopic slide
used with DZ63428 brackets - 2 sets (bottom mount)
used with DZ63428 brackets - 1 set (side mount)
front disconnect no
additional description Load rating 258kg if used for 10000 cycles with 610 mm wide drawer
additional description Flat mount load rating 51kg if used for 10000 cycles with 610 mm wide drawer
product feature anti-corrosion coating
product feature extension 100%
country of origin
rolling element material martensitic stainless steel
section [mm] 76,2x19,1

Technical materials

Product's substitutes
Product
dimensions
availability
Net price
DZ9301-0030U-E ACCURIDE

DZ9301-0030U-E ACCURIDE

 Telescopic slide, zinc plated, extension 100% (operating temp.: -20÷70°C, load/pair: 258kg)

76.2 x 19.1 x 762

in stock

Plewiska: 57 pcs

2 weeks: 30 pcs

Log in to see prices
Works with
Product
DZ63428 ACCURIDE

DZ63428 ACCURIDE

 Telescopic slide bracket, zinc plated
