dimensions | 50 x 72 x 12 |
Weight | 0.138 kg |
bearing arrangement | for universal matching |
cage | textolite, outer ring centred |
contact angle [°] | 25 |
country of origin | Germany |
Dynamic load rating [N] | 18600 |
limiting/attainable speed, grease [rpm] | 17000 |
limiting/attainable speed, oil [rpm] | 26000 |
precision | better than P4 |
preload | light preload |
product feature | high precision bearing |
rolling element material | big steel balls |

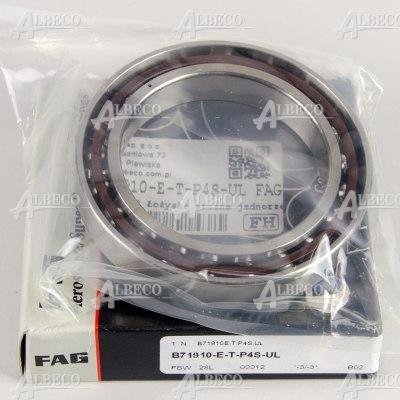

B71910-E-T-P4S-UL FAG
Single row angular-contact ball bearing, high precision bearing
manufacturer | FAG |
dimensions | 50 x 72 x 12 |
Weight | 0.138 kg |
type | single row angular-contact ball bearing |
sealing | none |
product feature | high precision bearing |
Dynamic load rating [N] | 18600 |
static load rating [N] | 11300 |
contact angle [°] | 25 |
cage | textolite, outer ring centred |
preload | light preload |
bearing arrangement | for universal matching |
precision | better than P4 |
country of origin | Germany |
limiting/attainable speed, oil [rpm] | 26000 |
limiting/attainable speed, grease [rpm] | 17000 |
rolling element material | big steel balls |
Technical materials
3MMV9310WICRDUL TIMKEN
Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)
2 weeks: 5 pcs
71910 ACD/P4ADGA SKF
Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)
Plewiska: 2 pair
2 weeks: 5 pair
Plewiska: 8 pcs
2 weeks: 5 pcs
71910 ACE/HCP4ADGA SKF
Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)
2 weeks: 5 pair
71910 ACE/P4ADGA SKF
Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)
Plewiska: 4 pcs
2 weeks: 1 pcs
Plewiska: 12 pcs
2 weeks: 4 pcs
71910HVDUJ74 SNR
Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)
Plewiska: 6 pcs
2 weeks: 39 pcs
Plewiska: 4 pcs
B71910-E-T-P4S-DUL FAG
Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)
Plewiska: 4 pcs
Plewiska: 8 pcs
Plewiska: 4 pcs
Plewiska: 14 pcs
HS71910-E-T-P4S-DUL FAG
Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)
Plewiska: 21 pcs
ISOFLEX NBU 15 (50g) KLUBER LUBRICATION
25-A KUKKO
HGW20CC-Z0-H HIWIN
GB35 SIT
