You are here: Bearing housings and units Bearing units Cast iron housing units PCJT40-XL-N INA

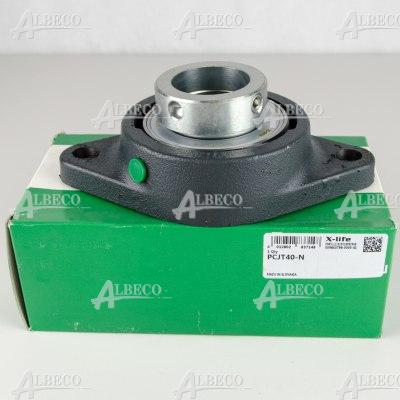

Cast iron bearing unit

PCJT40-XL-N INA

Name: PCJT40-XL-N INA
Rating: 4.5 (7 reviews)

60 0570 092 0 CLAAS

dimensions	40 x 0 x 0
Weight	1.545 kg
A1 [mm]	13
A [mm]	34.5
cage	polyamide
clearence	C3 - greater than normal
country of origin	Vietnam
Dynamic load rating [N]	34500
d [mm]	40
groove in housing for fixing protective caps	yes
groove on outer ring	yes
J [mm]	143.5
L2 [mm]	105

Plewiska (62)

on stock

Attributes Substitutes (2)

PCJT40-XL-N INA

Cast iron bearing unit

Attributes

manufacturer	INA
dimensions	40 x 0 x 0
Weight	1.545 kg
A [mm]	34.5
d [mm]	40
groove in housing for fixing protective caps	yes
L [mm]	172
L2 [mm]	105
clearence	C3 - greater than normal
groove on outer ring	yes
type	cast iron bearing unit
sealing	double-sided lip seal covered with a plate
A1 [mm]	13
J [mm]	143.5
Dynamic load rating [N]	34500
static load rating [N]	19800
cage	polyamide
country of origin	Vietnam
